Product Information

ENTRA CL 3" LED WALL WASH DOWNLIGHT

The ENTRA CL3 LED Wall Wash downlight offers a cost-effective alternative for multi-family, hospitality and tenant improvement applications without sacrificing architectural grade aesthetic or quality. Custom engineered for high performance and reliability, ENTRA CL3 Wall Wash provides a beautifully smoothed illumination on the wall from top to bottom. Modules are available with three Static White CCT options and 3000K-1800K warm color dimming. Trim options include Flanged or Flangeless (includes mud plate) and Round or Square in Satin Silver, Champagne, Black and White finish (White finish is field-paintable).

  • 2700, 3000K, 3500K, Warm Dim 3000K-1800K
  • Multiple Output Options
  • Flanged or Flangeless Ceiling Appearance

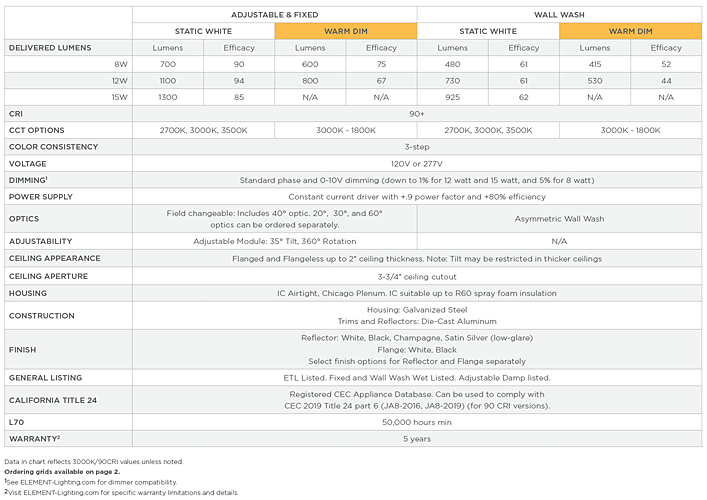

  • Specification Chart



    Trims

    Every ENTRA trim is die cast aluminum. No seams. No warping. No sagging.


    SQUARE TRIMS


    FLANGELESS WALL WASH


    FLANGED WALL WASH

    ROUND TRIMS


    FLANGELESS WALL WASH


    FLANGED WALL WASH

    Finishes

    White Trim

    Black Trim


    White Trim, Black Reflector


    Black Trim, Black Reflector


    White Trim, White Reflector


    Black Trim, White Reflector


    White Trim,
    Champagne Reflector


    Black Trim,
    Champagne Reflector


    White Trim, Silver Reflector

    Black Trim, Silver Reflector

    Housings


    IC AIRTIGHT / CHICAGO PLENUM

    Installation

    Flangeless Installation

    Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.



    Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).


    Mount wall board to ceiling and walls.




    Attach plaster plate to the aperture using supplied hardware.


    Skim coat around the plaster plate and up to the aperture for a seamless appearance.
    International Association of Lighting Designers ISO - International Organization for Standards Energy Star Rated
