MERGE™ 3.0 Suspended Linear System
downloads
spec sheets
instruction sheets
IES files
revit file
MERGE Linear System Brochure
play video
spec sheets
instruction sheets
Instruction Sheets
- Merge 3 - Linear Suspension
- Merge 3 - Corners Suspension
- Merge - Linear w. Emergency Battery Backup
- Merge 3 - Gimbal Spot Head, Drop Down Spot Head, and FreeJack Adaptor
- 120V to 12V DC Single Feed 60W Remote Electronic Transformer
- 120V to 12V Single Feed 150W Remote Magnetic Transformer
- 120V to 12V DC Single Feed 150W Remote Electronic Transformer
- 120V to 12V Single Feed 300W Remote Magnetic Transformer
- 120V to 12V DC Single Feed 300W Remote Electronic Transformer
- Merge 3 Suspension - Canopy
IES Files
- MERGE 4-FOOT LINEAR CHANNEL, 1000 LUMENS/FT DOWNLIGHT ONLY, 80CRI, 3500K
- MERGE 4-FOOT LINEAR CHANNEL, 350 LUMENS/FT DOWNLIGHT & 350 LUMENS/FT UPLIGHT, 80CRI, 3500K
- MERGE 4-FOOT LINEAR CHANNEL, 350 LUMENS/FT DOWNLIGHT & 600 LUMENS/FT UPLIGHT, 80CRI, 3500K
- MERGE 4-FOOT LINEAR CHANNEL, 350 LUMENS/FT DOWNLIGHT ONLY, 80CRI, 3500K
- MERGE 4-FOOT LINEAR CHANNEL, 350 LUMENS/FT UPLIGHT ONLY, 80CRI, 3500K
- MERGE 4-FOOT LINEAR CHANNEL, 600 LUMENS/FT UPLIGHT ONLY, 80CRI, 3500K
- MERGE 4-FOOT LINEAR CHANNEL, 700 LUMENS/FT DOWNLIGHT & 350 LUMENS/FT UPLIGHT, 80CRI, 3500K
- MERGE 4-FOOT LINEAR CHANNEL, 700 LUMENS/FT DOWNLIGHT & 600 LUMENS/FT UPLIGHT, 80CRI, 3500K
- MERGE 4-FOOT LINEAR CHANNEL, 700 LUMENS/FT DOWNLIGHT ONLY, 80CRI, 3500K
- MERGE Gimbal & Drop Down Spot Heads, 80CRI, 3500K, 40°

MERGE™ 3.0 Suspended Linear System
Whether being used to highlight architectural elements, enhance a room's size, or deliver well-controlled general illumination, patent-pending
ELEMENT Merge™ 3.0 puts the focus on the room and offers stunning design flexibility. Whether static white or programmable white, recessed lines of uniform,
glare-free LED light can be designed to make 90° turns in the same place for enhanced architectural interest. To further the utility of this beautifully integrated linear lighting system,
spot heads or pendants can be added directly into the channel at any point along its concealed low-voltage bus system for simultaneous accent or task illumination.

DESIGN FEATURES AND OPTIONS:
Downlight, uplight, and low-voltage track in one linear fixture
4 ft, 6 ft, and 8 ft gangable linear lengths with "L" connectors
Linear channel: Static white with multiple CRI and color temperature options or programmable white
3-Step or better color binning
Internal reflector finished with high reflectance matte white paint for even light distribution & optimal efficiency
Two spot head options: MERGE™ 3.0 Gimbal and MERGE™ 3.0 Drop-Down
Twist-and-lock design allows LED adjustable spot heads to be placed anywhere along the bus channel
Multiple CRI, color temperature, and beam spread options
FreeJack connector allows the use of any Tech Lighting low-voltage head or pendant to be mounted along the integrated bus channel



The ELEMENT Merge™ 3.0 Suspended LED linear system represents the marriage of indirect downlight, independent up light, and a track system;
all in one system with independent control and outputs for optimal illumination and power conservation. With varying length components,
Merge 3.0 Suspended can be configured up to a continuous 80' run from a single feed. A 90° connector is also available for illuminated same-plane turns.
The Merge™ Gimbal and the Merge™ 3.0 Drop-Down Spots, or many Tech Lighting low-voltage heads or pendants (using the FreeJack connector) can be placed anywhere
along the concealed low-voltage bus system for added versatility.

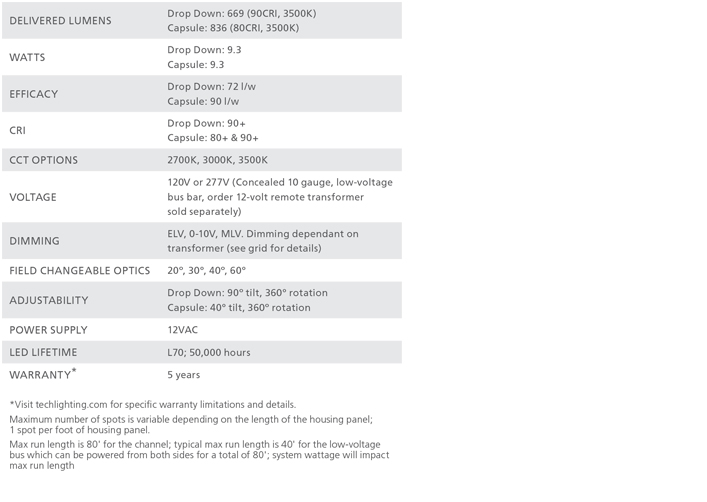

Specification Chart



The ELEMENT Merge™ 3.0 low-voltage bus system allows you to simply
twist-and-lock LED adjustable spot heads anywhere along the channel for stunning design flexibility. Options for beam spread, mounting, and color
temperature allow designers to specify a system tailored to exacting demands. The Merge™ 3.0 Gimbal and the Merge™ 3.0 Drop-Down Spot allow maximum aimability utilizing the Merge FJ connector.
For further design options, the FJ connector allows any Tech Lighting low-voltage head or pendant to be mounted from the Merge system making it remarkably versatile.

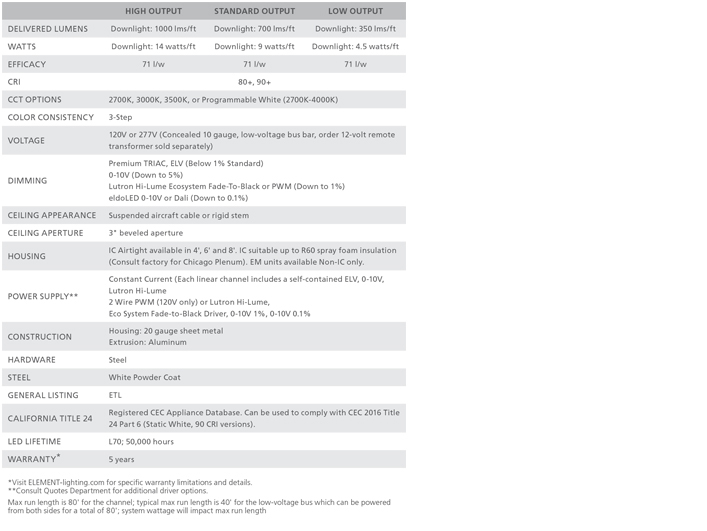

SPECIFICATIONS



Creating a continuous uninterrupted line of beautiful, glare-free LED light, the ELEMENT Merge™ 3.0 Suspended LED linear system inconspicuously puts light where it is needed.
The continuous line aesthetic created by the ELEMENT Merge™ 3.0 system is enhanced using a specifically engineered 90° turn connector.
Lines of LED light can be designed to seamlessly make 90° same-plane turns for enhanced design interest while also allowing the option to add spot heads for accent and task lighting,
all without adding more light fixtures to the space.

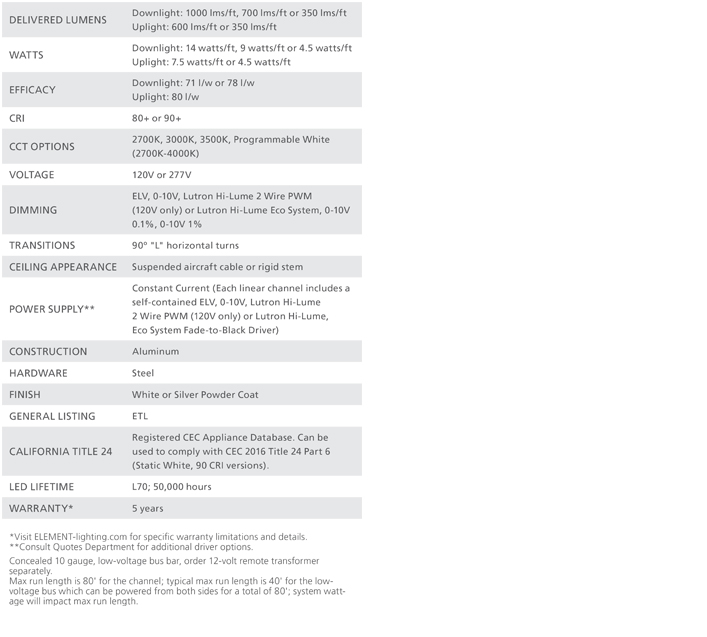

SPECIFICATIONS


Applications
