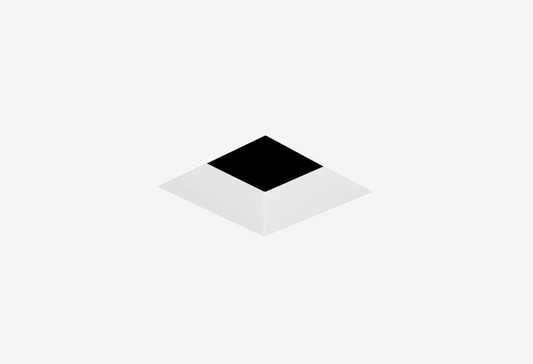

2" LED ADJUSTABLE DOWNLIGHT AND WALL WASH
The ELEMENT 2" adjustable downlight boasts a 1.4" aperture and 2.75" ceiling cutout. Unique aiming/locking mechanism offers 0-45º tilt, 361º rotation, and ELEMENT's patented high-low lamp positioning.
Flanged or flangeless (includes mud plate), round or square, flat or beveled die-cast trims in four finishes.
Interchangeable optics: 20º, 30º, 40º, 60º and dedicated wall wash trims offer a full suite of installation solutions.
Remodel installation also available with same performance and trim options. Suitable for use in .375"-2" ceiling
thickness (Note: tilt restriction in thicker ceilings.)

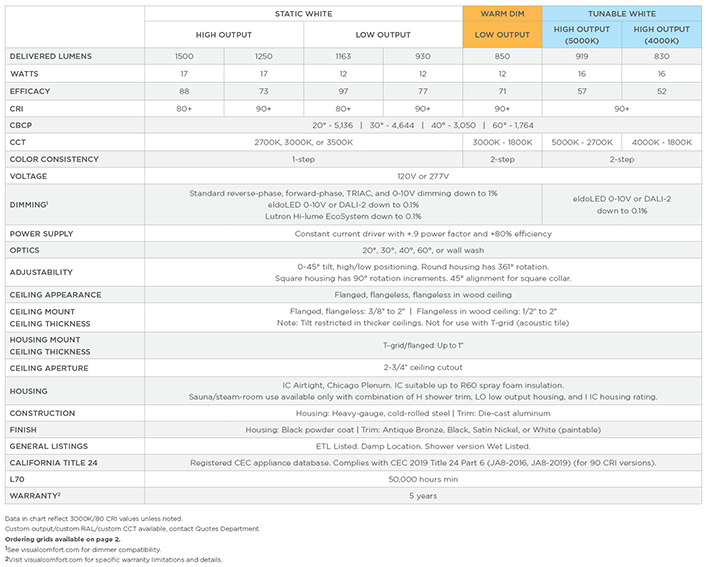

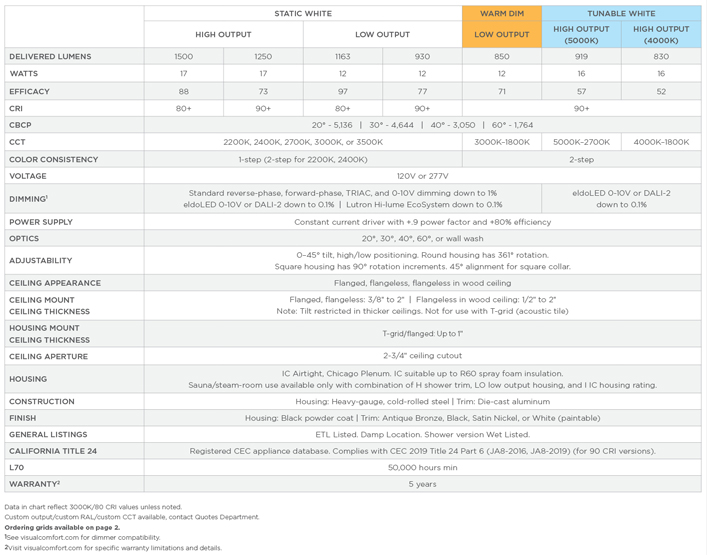

Specification Chart
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.
Finishes available in antique bronze, black, satin nickel, white (paintable).

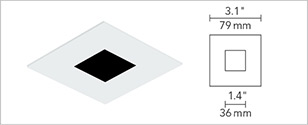

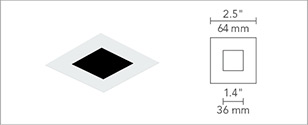

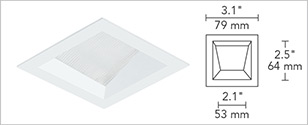

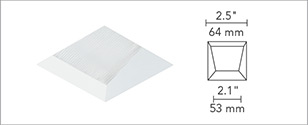

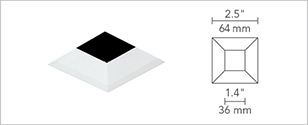

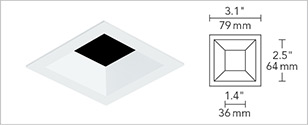

SQUARE TRIMS FLANGELESS BEVEL  FLANGELESS FLAT  FLANGELESS WALL WASH  FLANGED BEVEL  FLANGED FLAT  FLANGED WALL WASH |

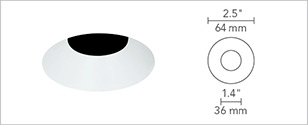

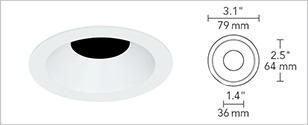

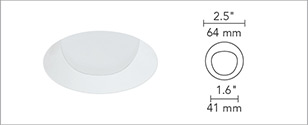

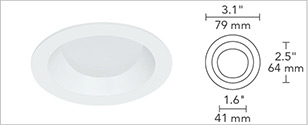

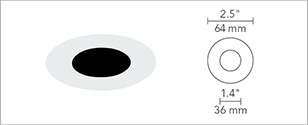

ROUND TRIMS FLANGELESS BEVEL  FLANGELESS FLAT  FLANGELESS WALL WASH  FLANGED BEVEL  FLANGED FLAT  FLANGED WALL WASH |
AVAILABLE FINISHES
Trim-Mounted Reflectors
ELEMENT Specular Reflectors reduce glare while creating a clean, quiet ceiling appearance.
Available finishes include Anodized Gold for a decorative accent, or Anodized Black for a truly silent ceiling look.
These beautiful trim accessories have been specifically designed to minimize any effect on light performance, color, and output.
- Can be easily installed or removed
- Mounts to existing trim
- Compatible with Fixed and Adjustable Housings
- Finish Options: Anodized Gold (G) or Anodized Black (B)
shown in Black
(below ceiling view)
shown in Black
(below ceiling view)
black reflector insert
shown in Black
(trim mounted)
Click here to download the Reflectors specification sheet.

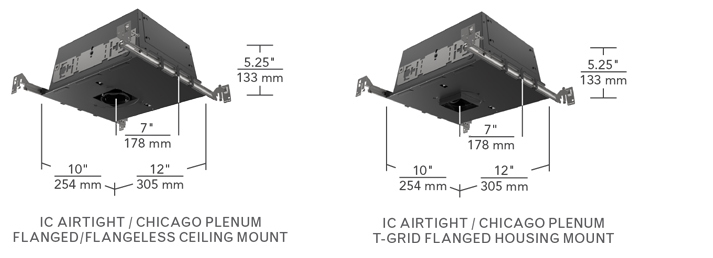

Housings
|
Flangeless Installation
Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.
Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).
Mount wall board to ceiling and walls.
Attach plaster plate to the aperture using supplied hardware.
Skim coat around the plaster plate and up to the aperture for a seamless appearance.
