3" HALOGEN/CMH ADJUSTABLE DOWNLIGHT
Small aperture recessed downlight fully adjustable with ELEMENT’s unique patented high-low lamp positioning. The innovative design allows the lamp to be positioned closer to the aperture for maximum light output and efficiency or higher to minimize glare and flash on the trim. Additional adjustability allows for hot aiming including 0°- 40° tilt and 361° rotation to eliminate dead spots. All aiming functions are lockable.

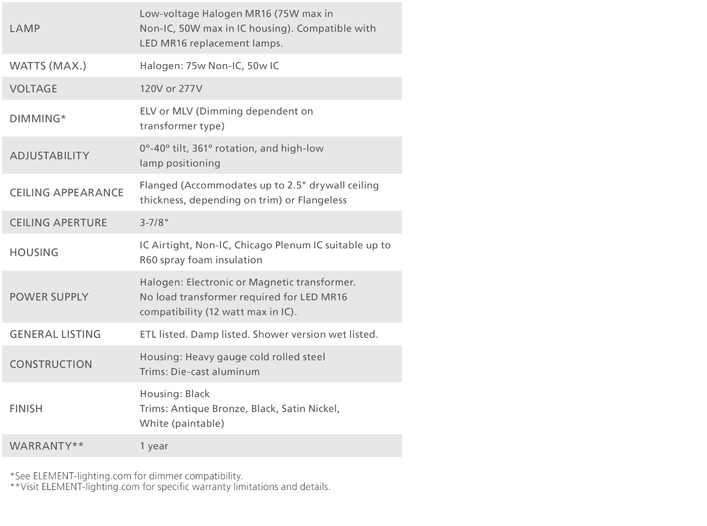

Specification Chart
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.
Finishes available in antique bronze, black, satin nickel, white (paintable).
Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.

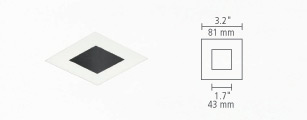

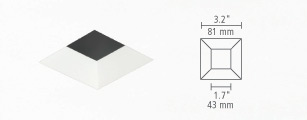

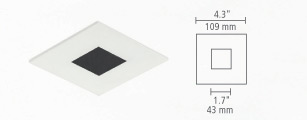

SQUARE TRIMS FLANGELESS BEVEL  FLANGELESS FLAT  FLANGED BEVEL  FLANGED FLAT |

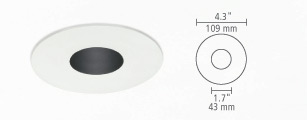

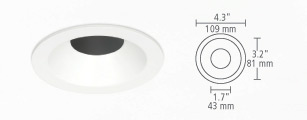

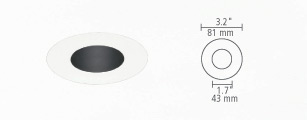

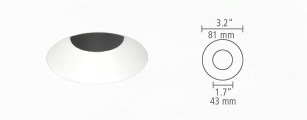

ROUND TRIMS FLANGELESS BEVEL  FLANGELESS FLAT  FLANGED BEVEL  FLANGED FLAT |
AVAILABLE FINISHES
Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.
Housings
 CHICAGO PLENUM
|
 IC AIRTIGHT
|
 NON-IC AIRTIGHT
|
Flangeless Installation
Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.
Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).
Mount wall board to ceiling and walls.
Attach plaster plate to the aperture using supplied hardware.
Skim coat around the plaster plate and up to the aperture for a seamless appearance.
