3" HALOGEN/CMH FIXED DOWNLIGHT
Small aperture recessed straight downlight with architectural appearance and optimized lamp positioning. Utilizes the same trims as the low-profile 3" halogen housing so it can be used in applications where varying housing depths are required while maintaining a uniform below the ceiling appearance.form below the ceiling appearance.
Specification Chart
Trims

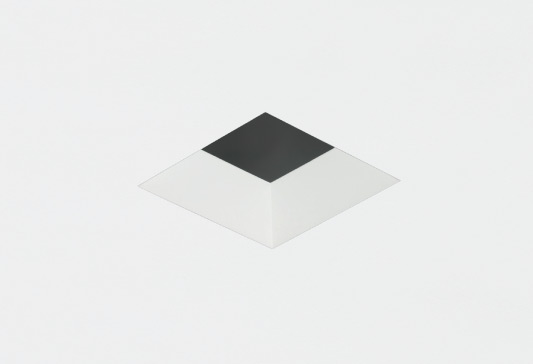

SQUARE TRIMS FLANGELESS BEVEL  FLANGELESS FLAT  FLANGED BEVEL  FLANGED FLAT |
ROUND TRIMS FLANGELESS BEVEL  FLANGELESS FLAT  FLANGED BEVEL  FLANGED FLAT |
AVAILABLE FINISHES
Flangeless trim units (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.
Trim-Mounted Reflectors
ELEMENT Specular Reflectors reduce glare while creating a clean, quiet ceiling appearance.
Available finishes include Anodized Gold for a decorative accent, or Anodized Black for a truly silent ceiling look.
These beautiful trim accessories have been specifically designed to minimize any effect on light performance, color, and output.
- - Can be easily installed or removed
- - Mounts to existing trim
- - Compatible with Fixed and Adjustable Housings
- - Finish Options: Anodized Gold (G) or Anodized Black (B)
shown in gold
(below ceiling view)
shown in gold
(below ceiling view)
black reflector insert
shown in gold
(trim mounted)
Click here to download the Reflectors specification sheet.
Housings
 CHICAGO PLENUM
|
 IC AIRTIGHT
|
 NON-IC AIRTIGHT
|
Flangeless Installation
Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.
Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).
Mount wall board to ceiling and walls.
Attach plaster plate to the aperture using supplied hardware.
Skim coat around the plaster plate and up to the aperture for a seamless appearance.
