3" HALOGEN/CMH WALL WASH
Small aperture wall wash with architectural appearance. Lamp is trim mounted for optimal light output. Trim angled with frosted linear spread lens which creates consistent and even horizontal and vertical illumination.
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.




Finishes available in antique bronze, black, satin nickel, white (paintable).
Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.

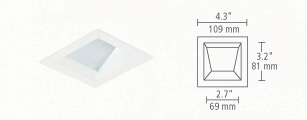

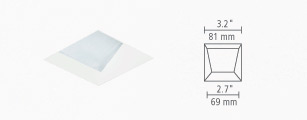

SQUARE TRIMS![]() FLANGELESS WALL WASH ![]() FLANGED WALL WASH |

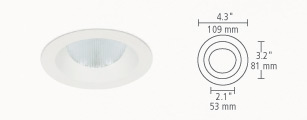

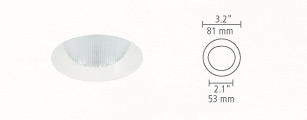

ROUND TRIMS![]() FLANGELESS WALL WASH ![]() FLANGED WALL WASH |
AVAILABLE FINISHES




Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.


Housings
![]() CHICAGO PLENUM
|
![]() IC AIRTIGHT
|
![]() NON-IC AIRTIGHT
|
Flangeless Installation
Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.
Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).

Mount wall board to ceiling and walls.

Attach plaster plate to the aperture using supplied hardware.

Skim coat around the plaster plate and up to the aperture for a seamless appearance.
