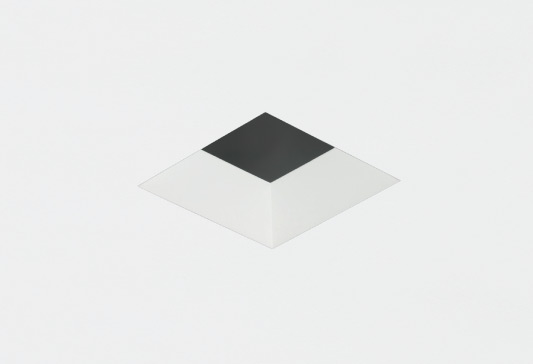

3" HALOGEN LOW-PROFILE ADJUSTABLE DOWNLIGHT

The ELEMENT 3" series small aperture, low-profile adjustable downlight provides a unique architectural appearance for even shallow ceiling plenum installations. Designed with a shallow 4" housing while utilizing the same trim pieces as the rest of the ELEMENT 3" series, the presence of the Low-Profile version is completely undetectable from below the ceiling. This makes it ideal for space constrained environments such as elevators and healthcare soffits. Complete adjustability allows for lockable hot aiming including 0°-35° tilt and 361° rotation, eliminating deadspots.

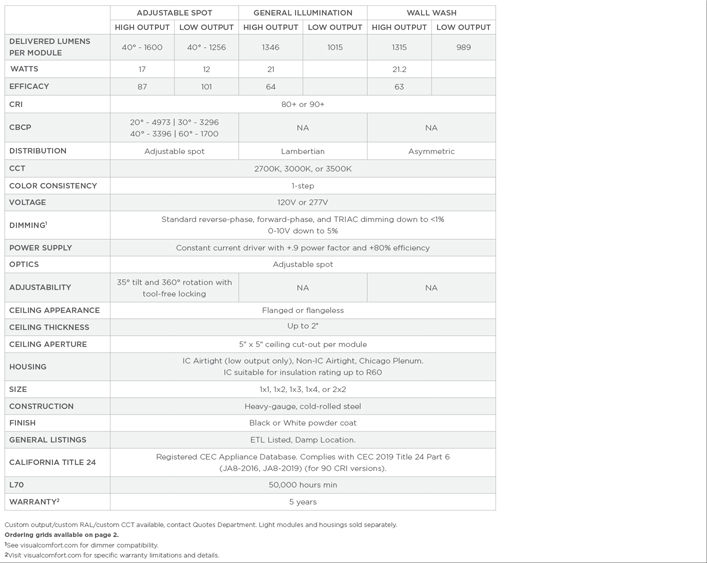

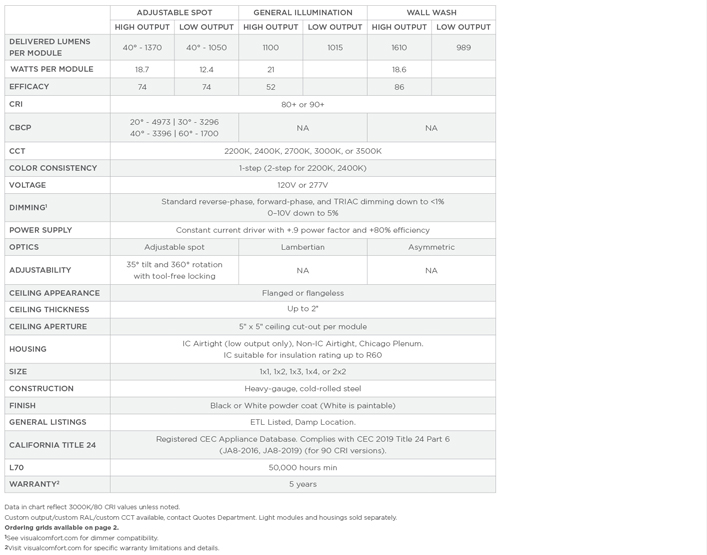

Specification Chart

Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.


SQUARE TRIMS


FLANGELESS BEVEL


FLANGELESS FLAT


FLANGED BEVEL


FLANGED FLAT

ROUND TRIMS


FLANGELESS BEVEL


FLANGELESS FLAT


FLANGED BEVEL


FLANGED FLAT


AVAILABLE FINISHES

Antique Bronze
Black
Satin Nickel
White
Finishes available in antique bronze, black, satin nickel, white (paintable).

Flangeless trim units (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.
Wood ceiling housings (”WC” designation in the ordering grid) ship with an adjustable trim adapter that inserts into the housing aperture and allows standard ELEMENT 3” flangeless trims to acheive a truly flangeless, flush ceiling appearance in special applications such as wood or stone installation. For use in new construction.

SHALLOW NON-IC AIRTIGHT

Flangeless Installation

Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.

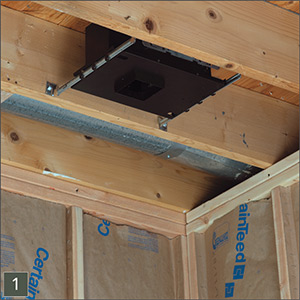

Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).

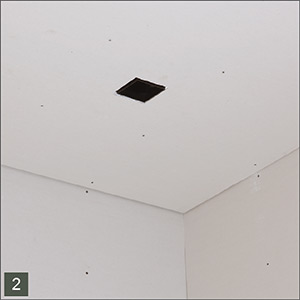

Mount wall board to ceiling and walls.

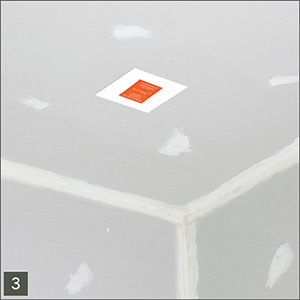

Attach plaster plate to the aperture using supplied hardware.

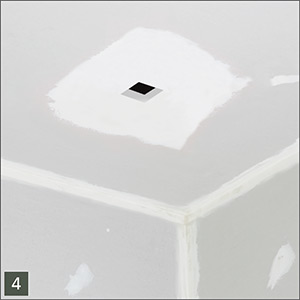

Skim coat around the plaster plate and up to the aperture for a seamless appearance.
