3" LED Downlight Remodel Adj and New Construction IC

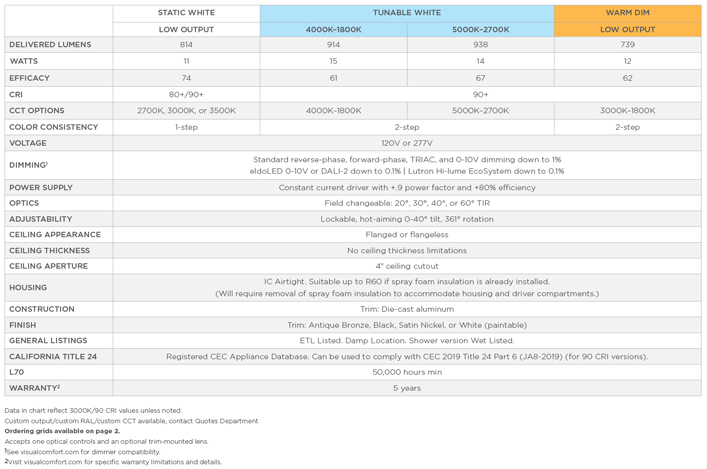

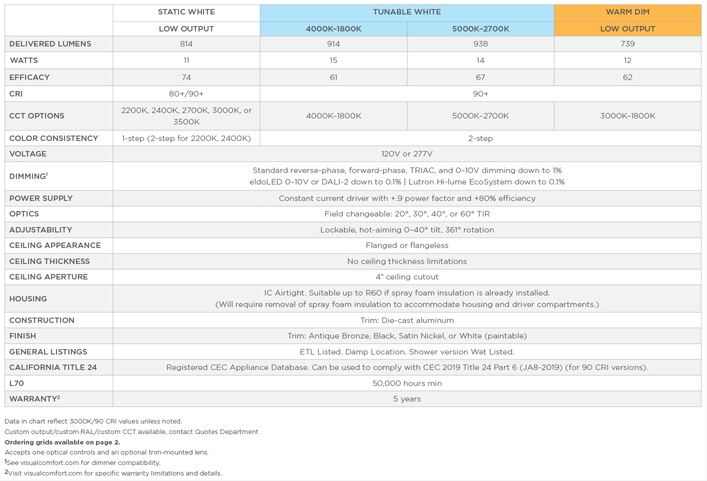

Product Information
3" LED DOWNLIGHT REMODEL ADJ AND NEW CONSTRUCTION IC
The ELEMENT 3" LED Downlight Remodel Adjustable IC offers a below-the-ceiling installation where a seamless, mud-in look or a traditional flanged appearance is desired in an insulation-contact application. Additionally, the New Construction Mounting option, offered in the same product series, provides additional installation flexibility and a small housing that fits into tight ceiling conditions. This product utilizes a similar LED module as our ELEMENT 2" Platform to accommodate the smaller housing, and features a 40° tilt and 361° rotation. The Flangeless mud plate is integral to the housing while still allowing below-the-ceiling servicing and installation. Die-cast trims are offered in Square or Round, Beveled or Flat, and Flanged or Flangeless. Finishes match ELEMENT New Construction trims for a coordinating aesthetic. IC-Rated and airtight Tool-free aiming and locking: 0°-40° tilt and 361° rotation Flangeless mud plate allows below-the-ceiling servicing and installation Trims match the ELEMENT 3" Platform Suitable for confined plenums Available with optional New Construction mounting hardware Reverse-phase, forward-phase, and TRIAC dimming down to 1% Multiple trim reflector options are available Solite Soft Focus lens options are available 1-step static white, 2-step warm dim and tunable white
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.

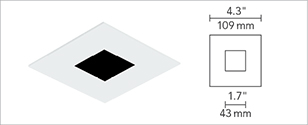

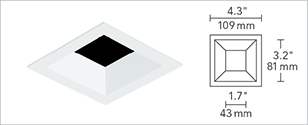

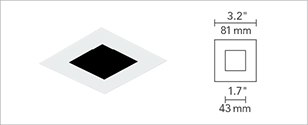

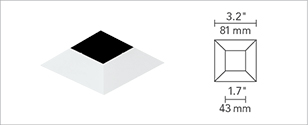

SQUARE TRIMS![]() FLANGELESS BEVEL ![]() FLANGELESS FLAT ![]() FLANGED BEVEL ![]() FLANGED FLAT |

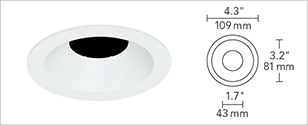

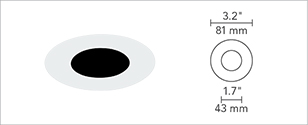

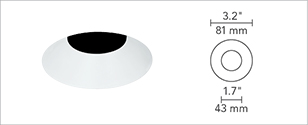

ROUND TRIMS![]() FLANGELESS BEVEL ![]() FLANGELESS FLAT ![]() FLANGED BEVEL ![]() FLANGED FLAT |
Housings

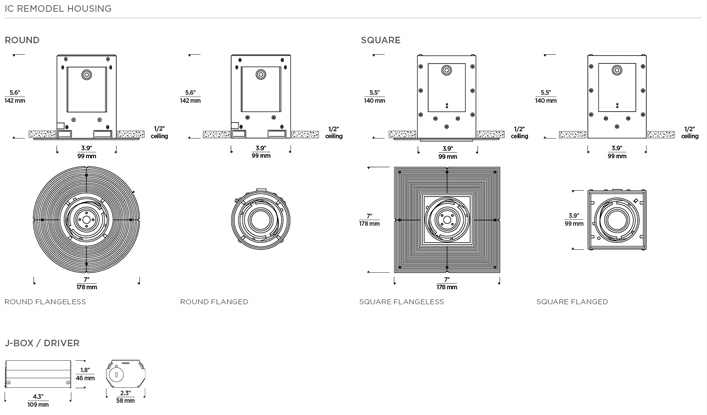

![]() IC AIRTIGHT
|

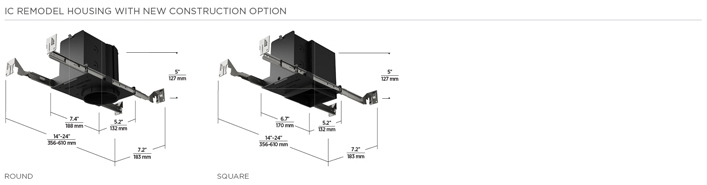

![]() NC IC AIRTIGHT NEW CONSTRUCTION MOUNTING
|
