3" LED DUAL ADJUSTABLE DOWNLIGHT

The 3" LED Dual Adjustable downlight provides high performance and beautiful architectural appearance when design requirements for task or accent lighting require two closely spaced downlights with ndependent aiming capability. Designed to utilize the same trim pieces as the rest of the ELEMENT 3" LED series (two per housing), the ELEMENT 3" LED Dual Adjustable can be used in conjunction with the entire 3" family and remain undetectable. Complete independent adjustability allows for lockable hot aiming with 0°- 35° tilt and 361° rotation of both light modules within a single housing.

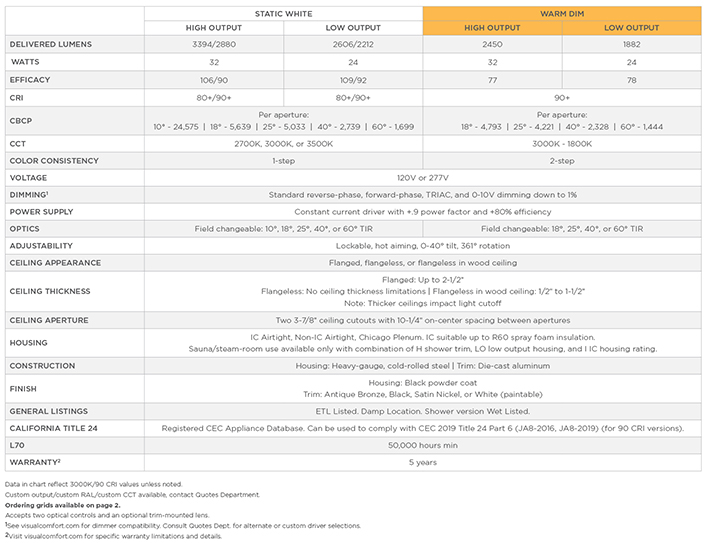

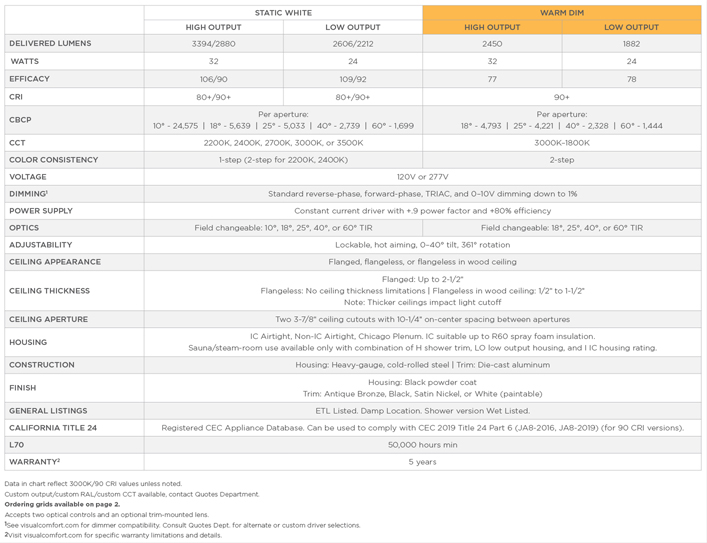

Specification Chart

Product Features
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.


SQUARE TRIMS

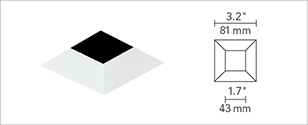

FLANGELESS BEVEL

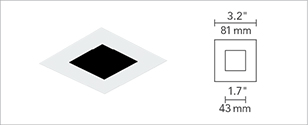

FLANGELESS FLAT

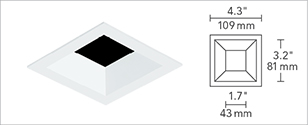

FLANGED BEVEL


FLANGED FLAT

ROUND TRIMS

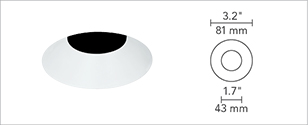

FLANGELESS BEVEL

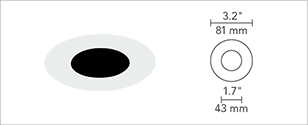

FLANGELESS FLAT

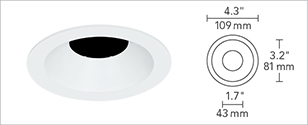

FLANGED BEVEL


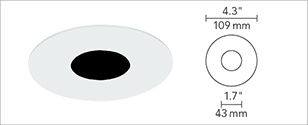

FLANGED FLAT


AVAILABLE FINISHES

Antique Bronze
Black
Satin Nickel
White
Finishes available in antique bronze, black, satin nickel, white (paintable).

Flangeless trim units (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.
Wood ceiling housings (”WC” designation in the ordering grid) ship with an adjustable trim adapter that inserts into the housing aperture and allows standard ELEMENT 3” flangeless trims to acheive a truly flangeless, flush ceiling appearance in special applications such as wood or stone installation. For use in new construction.

CHICAGO PLENUM

IC AIRTIGHT

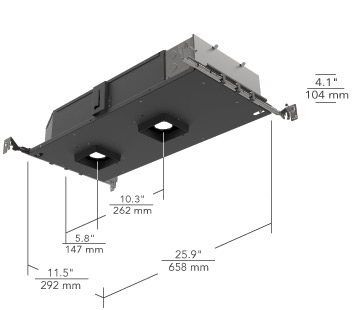

NON-IC AIRTIGHT

HI LUME NON-IC / CHICAGO PLENUM
ELEMENT 3"
DIMMER PART NUMBER FIXTURES PER DIMMER MEASURED LIGHT
OUTPUT RANGE
COMMENTS
Dimming Module
(Crestron)
CLS-C6 Consult Dimmer Co. 100% - 13%
Dimming Module
(Crestron)
CLS-C6EX Consult Dimmer Co. 100% - 13%
Dimming Module
(Crestron)
CLS-C6M Consult Dimmer Co. 100% - 13%
Dimming Module
(Crestron)
CLS-C6MEX Consult Dimmer Co. 100% - 13%
Dimming Module
(Crestron)
CLS-C6MRF Consult Dimmer Co. 100% - 13%
Dimming Module
(Crestron)
CLS-C6RF Consult Dimmer Co. 100% - 13%
Dimming Module
(Crestron)
CLS-EXP-DIM Consult Dimmer Co. 100% - 17% 12% low-end on 277V
Dimming Module
(Crestron)
CLS-EXP-DIMU Consult Dimmer Co. N/A Not recommended 120v, 100%-8% on 277v
Dimming Module
(Crestron)
CLW-DELVEX-277-P Consult Dimmer Co. 100% - 5% 277v only
Dimming Module
(Crestron)
CLW-DELVEX-E Consult Dimmer Co. 100% - 12%
Dimming Module
(Crestron)
CLW-DELVEX-P Consult Dimmer Co. 100% - 12%
Dimming Module
(Crestron)
CLW-DIMEX-E N/A N/A Not recommended- some flicker
Dimming Module
(Crestron)
CLW-DIMEX-P N/A N/A Not recommended- some flicker
Dimming Module
(Crestron)
CLW-DIMSWEX-E N/A N/A Not recommended- some flicker
Dimming Module
(Crestron)
CLW-DIMSWEX-P N/A N/A Not recommended- some flicker
Dimming Module
(Crestron)
CLX-1DELV4 Consult Dimmer Co. 100% - 16%
Dimming Module
(Crestron)
CLX-1DIM4 Consult Dimmer Co. 100% - 20% May require firmware, consult Crestron
Dimming Module
(Crestron)
CLX-1DIM8 Consult Dimmer Co. 100% - 20% May require firmware, consult Crestron
Dimming Module
(Crestron)
CLX-2DIM2 Consult Dimmer Co. 100% - 20% May require firmware, consult Crestron
Dimming Module
(Crestron)
CLX-2DIM8 Consult Dimmer Co. 100% - 20% May require firmware, consult Crestron
Dimming Module
(Crestron)
DIN-1DIM4 Consult Dimmer Co. 100% - 12% 100% - 8% ON 277V
Dimming Module
(Crestron)
DIN-1DIMU4 Consult Dimmer Co. 100% - 14%
Dimming Module
(Crestron)
GLX-DIM6 Consult Dimmer Co. 100% - 5% 100% - 7% ON 277V
Dimming Module
(Crestron)
GLXX-2DIM8 Consult Dimmer Co. 100% - 6% 100% - 7% ON 277V
Dimming Module
(Crestron)
P-DIMEX N/A N/A Not recommended- some flicker
Incandescent
(Forbes & Lomax)
600 Watt Incandescent 1 - 6 96% - 15% Do not exceed load listed
MLV
(Leviton)
Model 6613 Not Recommended Not Recommended Limited dimming range, not recommended
ELV
(Leviton)
Model 6615 1 - 18 96% - 20%
Incandescent
(Leviton)
Model 6633 1 - 7 96% - 3% Single fixture will not power at lowest end of dimming range
UNIV
(Leviton)
Model 6672 1 - 12 96% - 25%
UNIV
(Leviton)
Model 6674/IPL06 1 - 12 96% - 4%
ELV
(Leviton)
Model IPE04 1 - 18 96% - 10%
Incandescent
(Leviton)
Model IPI06 1 - 7 96% - 15%
MLV
(Leviton)
Model IPM06 Not Recommended Not Recommended Limited dimming range, not recommended
UNIV
(Leviton)
Model IPSD6/IPVD6 Not Recommended Not Recommended Limited dimming range, not recommended
Incandescent
(Leviton)
Model VP106 1 - 7 96% - 6%
ELV
(Leviton)
Model VPE04 1 - 18 96% - 18%
MLV
(Leviton)
Model VPM06 1 - 12 96% - 5%
Incandescent
(Leviton)
Model VR106 Not Recommended Not Recommended Limited dimming range, not recommended
ELV
(Leviton)
Model VRE04 1 - 18 96% - 10%
MLV
(Leviton)
Model VRM10 1 - 12 96% - 5%
Incandescent
(Lutron)
DV-600P-WH 1 - 3 98% - 1%
Incandescent
(Lutron)
DVCL-153P-WH Not Recommended Not Recommended Buzzing
ELV
(Lutron)
DVELV-303P 1 - 18 97% - 4%
ELV
(Lutron)
HQRD-6NA 1-10 96%-2%
Dimming Module
(Lutron)
HW/LP-RPM-4A-120 1 - 10 100% - 15% High and low-end trim required
Dimming Module
(Lutron)
HW/LP-RPM-4U-120 1 - 10 100% - 13% High and low-end trim required
Incandescent
(Lutron)
MA-600-WH Not Recommended Not Recommended Flicker at low end
ELV
(Lutron)
MRF2-6ELV-120-WH 1 - 18 98% - 2%
ELV
(Lutron)
NTELV-600-WH 1 - 18 98% - 8%
ELV
(Lutron)
NVELV-600-WH 1 - 18 94% - 10%
ELV
(Lutron)
SELV-600-WH 1 - 18 94% - 4%
Dimming Module
(Vantage)
EDIMMOD Min 1 96% - 10% Consult dimmer company for max fixtures per dimmer. Recommend PWM, reverse phase.
Dimming Module
(Vantage)
RDR4 Min 2 100% - 2% Consult dimmer company for max fixtures per dimmer. Recommend PWM, reverse phase.
Dimming Module
(Vantage)
SDM12-EM Min 2 95% - 7% Consult dimmer company for max fixtures per dimmer. Recommend PWM, reverse phase.

ELEMENT 3" Hi Lume Driver- 2 wire dimming only*
DIMMER PART NUMBER FIXTURES PER DIMMER MEASURED LIGHT
OUTPUT RANGE
COMMENTS
GRAFIK Eye 3000
(Lutron)
GRX-3100, GRX-3500 1-10 (per output) 100-1% Set load type before adjusting low-end trim
HomeWorks QS 1000W(LED)
(Lutron)
HQRD-10ND 1-13 100-1% Set load type before adjusting low-end trim
HomeWorks QS adaptive dimmer
(Lutron)
HQRD-6NA 1-8 100-1% Set load type before adjusting low-end trim
HomeWorks QS 600W (LED)
(Lutron)
HQRD-6ND 1-8 100-1% Set load type before adjusting low-end trim
HomeWorks QS WPM (LED)
(Lutron)
HQRJ-WPM-6D-120 1-10 (per output) 100-1% Set load type before adjusting low-end trim
HomeWorks 1000W dimmer
(Lutron)
HRD-10ND, HWD-10ND 1-13 100-1%
HomeWorks 600W dimmer
(Lutron)
HRD-6ND 1-8 100-1%
HomeWorks WPM
(Lutron)
HWI-WPM-6D-120 1-10 (per output) 100-1%
RPM-4A module (LCP, HomeWorks, GRAFIK Systems, Quantum) (LED)
(Lutron)
HW-RPM-4A-120[br]LP-RPM-4A-120 1-13 (per output) 100-1% Set load type before adjusting low-end trim
RPM-4U module (LCP, HomeWorks, GRAFIK Systems, Quantum) (LED)
(Lutron)
HW-RPM-4U-120[br]LP-RPM-4U-120 1-10 (per output) 100-1% Set load type before adjusting low-end trim
Maestro Wireless
(Lutron)
MRF2-6nd-120 1-8 100-1% Do Not Use, Low Level Humming
Nova T
(Lutron)
NTLV-600-CPN0199 1-8 100-1%
GRAFIK Eye QS
(Lutron)
QSGR, QSGRJ 1-10 (per output) 100-1% Set load type before adjusting low-end trim
RadioRA 1000W
(Lutron)
RA-10ND 1-13 100-1%
RadioRA 600W
(Lutron)
RA-6ND 1-8 100-1%
RadioRa 2 1000W
(Lutron)
RRD-10ND 1-13 100-1%
Radio Ra 2 adaptive dimmer
(Lutron)
RRD-6NA 1-8 100-1%
Stanza
(Lutron)
SZ-6ND 1-8 100-1%

Flangeless Installation

Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.



Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).


Mount wall board to ceiling and walls.




Attach plaster plate to the aperture using supplied hardware.


Skim coat around the plaster plate and up to the aperture for a seamless appearance.
