3" LED Low-Profile Adjustable Downlight
Product Information
3" LED LOW-PROFILE ADJUSTABLE DOWNLIGHT

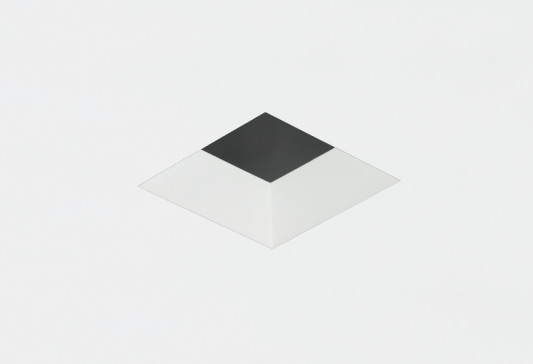

The ELEMENT 3" LED Low-Profile Adjustable Downlight provides a beautiful architectural appearance and high performance for shallow ceiling plenum installations. Designed with an ultra-shallow 4" housing and utilizing the same trim pieces as the rest of the ELEMENT 3" LED series, can be used in conjunction with the entire 3" family and remain undetectable. Ideal for space constrained environments such as elevators and healthcare soffits. Complete adjustability allows for lockable hot aiming with 0°- 40° tilt and 361° rotation, eliminating deadspots.

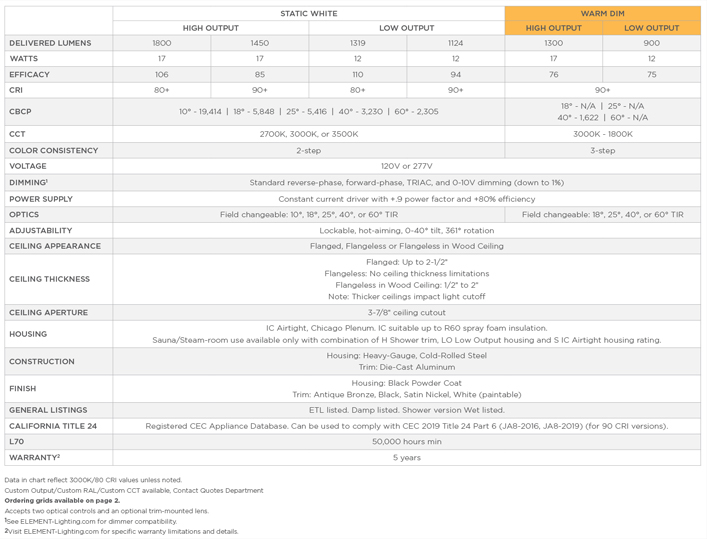

Specification Chart
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.
Finishes available in antique bronze, black, satin nickel, white (paintable).
Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.

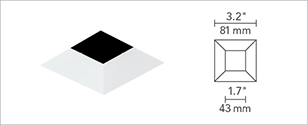

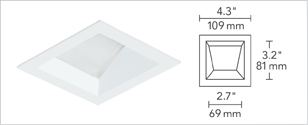

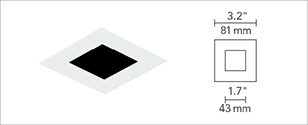

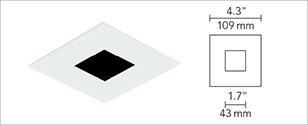

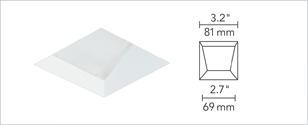

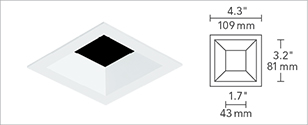

SQUARE TRIMS FLANGELESS BEVEL  FLANGELESS FLAT  FLANGELESS WALL WASH  FLANGED BEVEL  FLANGED FLAT  FLANGED WALL WASH |

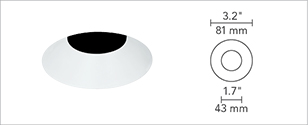

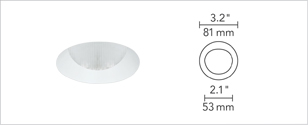

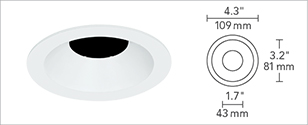

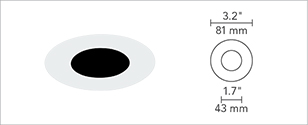

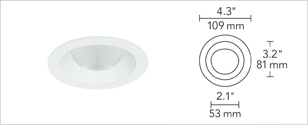

ROUND TRIMS FLANGELESS BEVEL  FLANGELESS FLAT  FLANGELESS WALL WASH  FLANGED BEVEL  FLANGED FLAT  FLANGED WALL WASH |
AVAILABLE FINISHES
Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.
Housings
 CHICAGO PLENUM SHALLOW
|
 SHALLOW IC/NON-IC AIRTIGHT
|
Flangeless Installation
Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.
Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).
Mount wall board to ceiling and walls.
Attach plaster plate to the aperture using supplied hardware.
Skim coat around the plaster plate and up to the aperture for a seamless appearance.
