Product Information

3" LED LOW-PROFILE FIXED DOWNLIGHT

Small aperture LED downlight with architectural appearance. 3.5" height for shallow ceiling installations. Utilizes the same trims as the standard 3" housing so it can be used in the same application where a shallower housing is required.

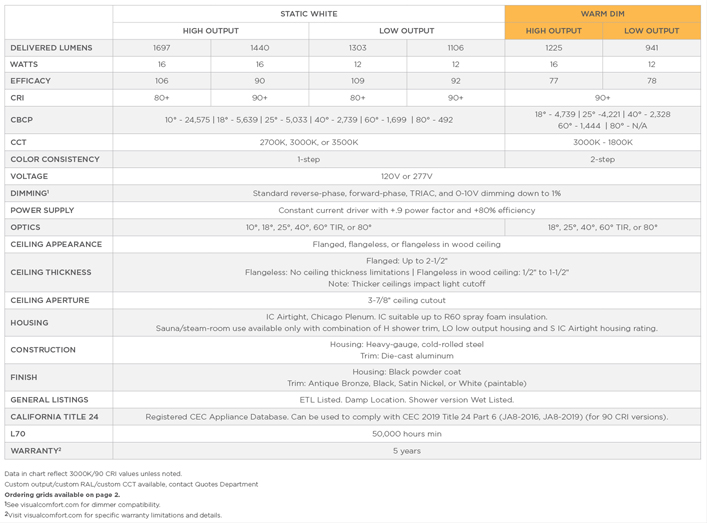

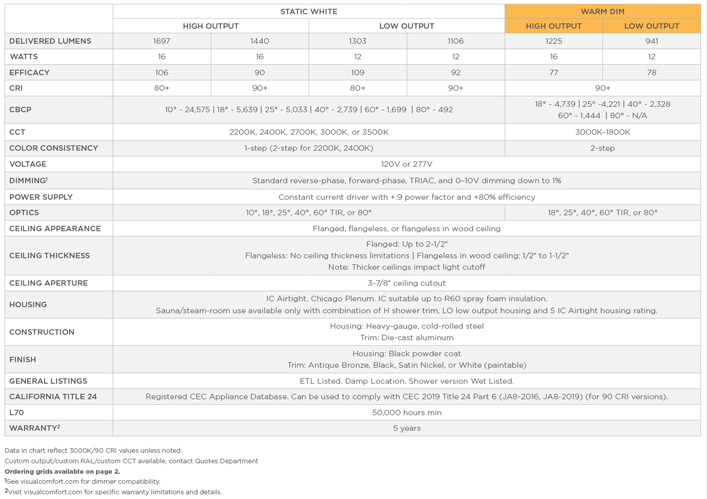

Specification Chart



Trims

Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.

SQUARE TRIMS

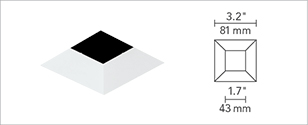

FLANGELESS BEVEL

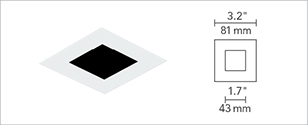

FLANGELESS FLAT

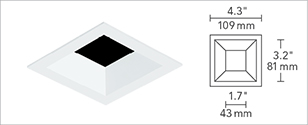

FLANGED BEVEL

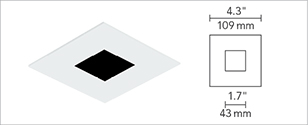

FLANGED FLAT

ROUND TRIMS

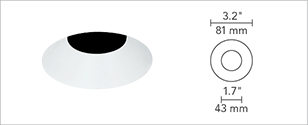

FLANGELESS BEVEL

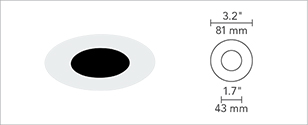

FLANGELESS FLAT

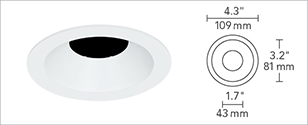

FLANGED BEVEL


FLANGED FLAT

AVAILABLE FINISHES

Antique Bronze
Black
Satin Nickel
White
Finishes available in antique bronze, black, satin nickel, white (paintable).

Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.

Trim-Mounted Reflectors

ELEMENT Specular Reflectors reduce glare while creating a clean, quiet ceiling appearance. Available finishes include Anodized Gold for a decorative accent, or Anodized Black for a truly silent ceiling look. These beautiful trim accessories have been specifically designed to minimize any effect on light performance, color, and output.
  • Can be easily installed or removed
  • Mounts to existing trim
  • Compatible with Fixed and Adjustable Housings
  • Finish Options: Anodized Gold (G) or Anodized Black (B)




shown in Black
(below ceiling view)

shown in Black
(below ceiling view)

black reflector insert

shown in Black
(trim mounted)



Click here to download the Reflectors specification sheet.
Wood ceiling housings (”WC” designation in the ordering grid) ship with an adjustable trim adapter that inserts into the housing aperture and allows standard ELEMENT 3” flangeless trims to acheive a truly flangeless, flush ceiling appearance in special applications such as wood or stone installation. For use in new construction.

Housings


IC/NON-IC/CHICAGO PLENUM

Installation

Flangeless Installation

Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.



Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).


Mount wall board to ceiling and walls.




Attach plaster plate to the aperture using supplied hardware.


Skim coat around the plaster plate and up to the aperture for a seamless appearance.

Applications

International Association of Lighting Designers ISO - International Organization for Standards Energy Star Rated
