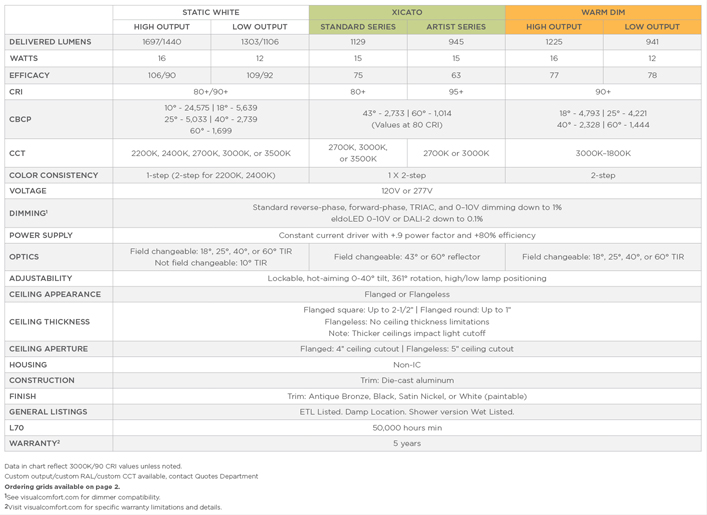

![](/i//ELEMENT/products/large/3_led_remodel_down_non-ic_adj.jpg)
3" LED Remodel Downlight Non-IC Adjustable

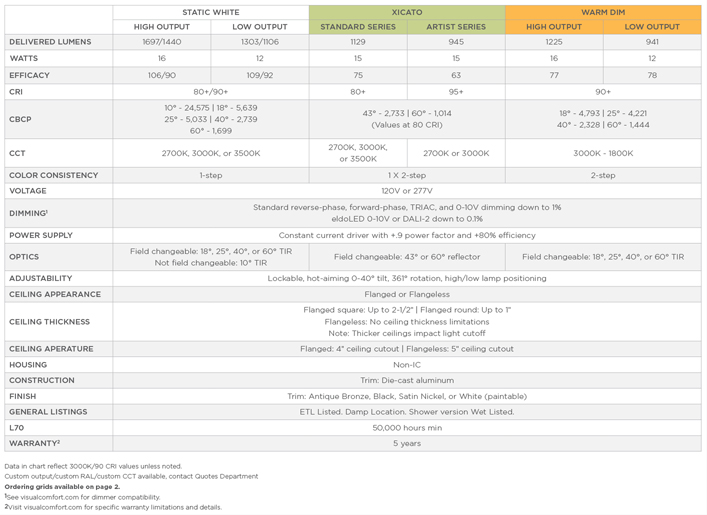

Product Information
3" LED REMODEL DOWNLIGHT NON-IC ADJUSTABLE
The ELEMENT 3" LED Flanged or Flangeless Adjustable Remodel is suited for below the ceiling installation
where a seamless, mudded-in look is desired. Featuring a precision aiming mechanism with 0-40º tilt and 361º
rotation, and ELEMENT's patented High-Low lamp positioning in a 5.75" deep housing mechanism. The mud
plate is designed integral to the housing while still allowing below the ceiling servicing and installation. Trims
are offered in die-cast square or round, beveled or flat, flanged or flangeless, in 4 finishes all matching ELEMENT
new construction trims.
![LED / 5-Year Warranty](/Content/Images/Products/led-5-year.png)
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.

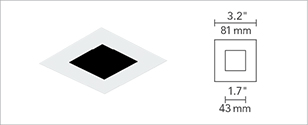

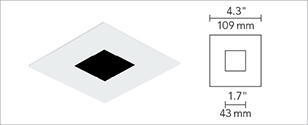

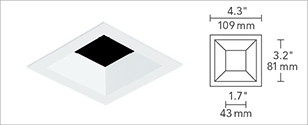

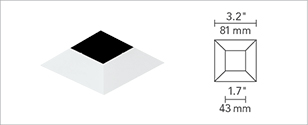

SQUARE TRIMS![]() FLANGELESS BEVEL ![]() FLANGELESS FLAT ![]() FLANGED BEVEL ![]() FLANGED FLAT |

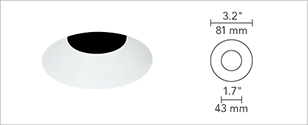

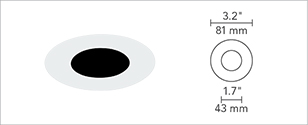

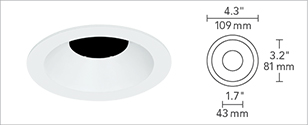

ROUND TRIMS![]() FLANGELESS BEVEL ![]() FLANGELESS FLAT ![]() FLANGED BEVEL ![]() FLANGED FLAT |
Trim-Mounted Reflectors
ELEMENT Specular Reflectors reduce glare while creating a clean, quiet ceiling appearance.
Available finishes include Anodized Gold for a decorative accent, or Anodized Black for a truly silent ceiling look.
These beautiful trim accessories have been specifically designed to minimize any effect on light performance, color, and output.
- Can be easily installed or removed
- Mounts to existing trim
- Compatible with Fixed and Adjustable Housings
- Finish Options: Anodized Gold (G) or Anodized Black (B)
![](/i/ELEMENT/products/reflectors/3in_reflectors_chart.jpg)
![](/i/ELEMENT/products/reflectors/reflectors_blackgold.jpg)
shown in Black
(below ceiling view)
![](/i/ELEMENT/products/reflectors/reflectors_whitegold.jpg)
shown in Black
(below ceiling view)
![](/i/ELEMENT/products/reflectors/reflectors_black.jpg)
black reflector insert
![](/i/ELEMENT/products/reflectors/reflectors_gold.jpg)
shown in Black
(trim mounted)
Click here to download the Reflectors specification sheet.
Housings

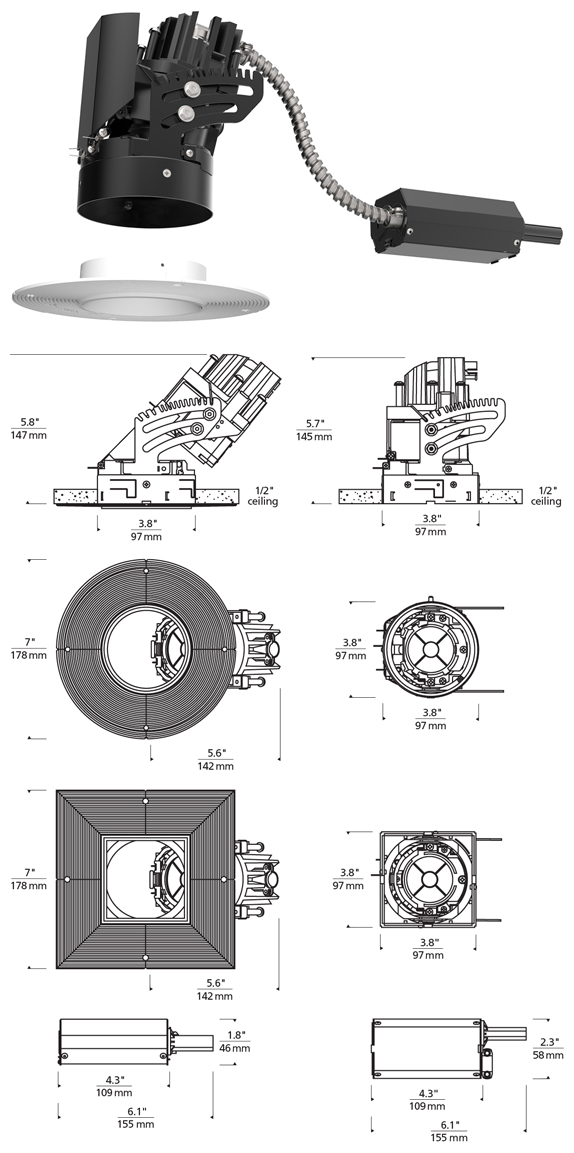

![]() NON-IC
|
