3" LED REMODEL FIXED DOWNLIGHT

The ELEMENT 3" LED Remodel is well suited for any remodel application and uniquely suited for special applications such as FLANGELESS wood ceilings. The trim installation method accommodates any ceiling thickness, and the flangeless trims do not require any mudding.* Also offered in flanged version. At a 5" depth from the bottom of the ceiling, it provides the perfect solution

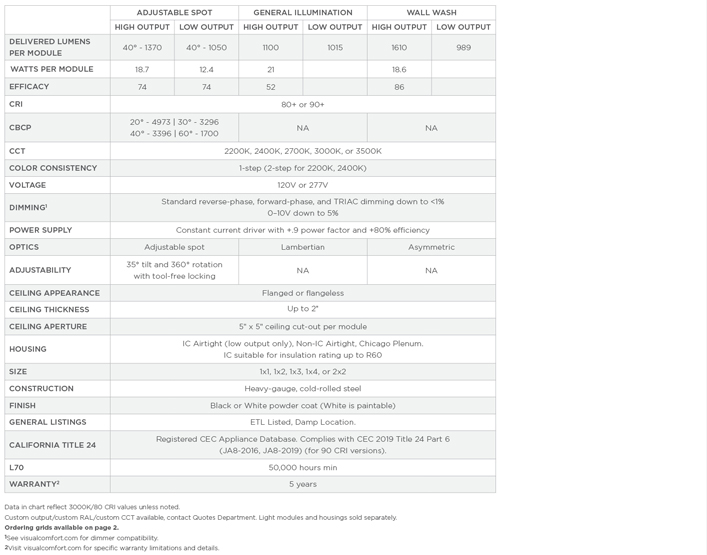

Specification Chart

Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.


SQUARE TRIMS


FLANGELESS BEVEL


FLANGELESS FLAT


FLANGED BEVEL


FLANGED FLAT

ROUND TRIMS


FLANGELESS BEVEL


FLANGELESS FLAT


FLANGED BEVEL


FLANGED FLAT


AVAILABLE FINISHES

Antique Bronze
Black
Satin Nickel
White
Finishes available in antique bronze, black, satin nickel, white (paintable).

Due to the brittle nature of drywall, extra care and consideration must be taken when determining whether to install the flangless remodel trims in drywall applications to avoid chipping. If this is not feasable, we recommend using the flanged trims.

NON-IC AIRTIGHT
ELEMENT 3"
DIMMER PART NUMBER FIXTURES PER DIMMER MEASURED LIGHT
OUTPUT RANGE
COMMENTS
Dimming Module
(Crestron)
CLS-C6 Consult Dimmer Co. 100% - 13%
Dimming Module
(Crestron)
CLS-C6EX Consult Dimmer Co. 100% - 13%
Dimming Module
(Crestron)
CLS-C6M Consult Dimmer Co. 100% - 13%
Dimming Module
(Crestron)
CLS-C6MEX Consult Dimmer Co. 100% - 13%
Dimming Module
(Crestron)
CLS-C6MRF Consult Dimmer Co. 100% - 13%
Dimming Module
(Crestron)
CLS-C6RF Consult Dimmer Co. 100% - 13%
Dimming Module
(Crestron)
CLS-EXP-DIM Consult Dimmer Co. 100% - 17% 12% low-end on 277V
Dimming Module
(Crestron)
CLS-EXP-DIMU Consult Dimmer Co. N/A Not recommended 120v, 100%-8% on 277v
Dimming Module
(Crestron)
CLW-DELVEX-277-P Consult Dimmer Co. 100% - 5% 277v only
Dimming Module
(Crestron)
CLW-DELVEX-E Consult Dimmer Co. 100% - 12%
Dimming Module
(Crestron)
CLW-DELVEX-P Consult Dimmer Co. 100% - 12%
Dimming Module
(Crestron)
CLW-DIMEX-E N/A N/A Not recommended- some flicker
Dimming Module
(Crestron)
CLW-DIMEX-P N/A N/A Not recommended- some flicker
Dimming Module
(Crestron)
CLW-DIMSWEX-E N/A N/A Not recommended- some flicker
Dimming Module
(Crestron)
CLW-DIMSWEX-P N/A N/A Not recommended- some flicker
Dimming Module
(Crestron)
CLX-1DELV4 Consult Dimmer Co. 100% - 16%
Dimming Module
(Crestron)
CLX-1DIM4 Consult Dimmer Co. 100% - 20% May require firmware, consult Crestron
Dimming Module
(Crestron)
CLX-1DIM8 Consult Dimmer Co. 100% - 20% May require firmware, consult Crestron
Dimming Module
(Crestron)
CLX-2DIM2 Consult Dimmer Co. 100% - 20% May require firmware, consult Crestron
Dimming Module
(Crestron)
CLX-2DIM8 Consult Dimmer Co. 100% - 20% May require firmware, consult Crestron
Dimming Module
(Crestron)
DIN-1DIM4 Consult Dimmer Co. 100% - 12% 100% - 8% ON 277V
Dimming Module
(Crestron)
DIN-1DIMU4 Consult Dimmer Co. 100% - 14%
Dimming Module
(Crestron)
GLX-DIM6 Consult Dimmer Co. 100% - 5% 100% - 7% ON 277V
Dimming Module
(Crestron)
GLXX-2DIM8 Consult Dimmer Co. 100% - 6% 100% - 7% ON 277V
Dimming Module
(Crestron)
P-DIMEX N/A N/A Not recommended- some flicker
Incandescent
(Forbes & Lomax)
600 Watt Incandescent 1 - 6 96% - 15% Do not exceed load listed
MLV
(Leviton)
Model 6613 Not Recommended Not Recommended Limited dimming range, not recommended
ELV
(Leviton)
Model 6615 1 - 18 96% - 20%
Incandescent
(Leviton)
Model 6633 1 - 7 96% - 3% Single fixture will not power at lowest end of dimming range
UNIV
(Leviton)
Model 6672 1 - 12 96% - 25%
UNIV
(Leviton)
Model 6674/IPL06 1 - 12 96% - 4%
ELV
(Leviton)
Model IPE04 1 - 18 96% - 10%
Incandescent
(Leviton)
Model IPI06 1 - 7 96% - 15%
MLV
(Leviton)
Model IPM06 Not Recommended Not Recommended Limited dimming range, not recommended
UNIV
(Leviton)
Model IPSD6/IPVD6 Not Recommended Not Recommended Limited dimming range, not recommended
Incandescent
(Leviton)
Model VP106 1 - 7 96% - 6%
ELV
(Leviton)
Model VPE04 1 - 18 96% - 18%
MLV
(Leviton)
Model VPM06 1 - 12 96% - 5%
Incandescent
(Leviton)
Model VR106 Not Recommended Not Recommended Limited dimming range, not recommended
ELV
(Leviton)
Model VRE04 1 - 18 96% - 10%
MLV
(Leviton)
Model VRM10 1 - 12 96% - 5%
Incandescent
(Lutron)
DV-600P-WH 1 - 3 98% - 1%
Incandescent
(Lutron)
DVCL-153P-WH Not Recommended Not Recommended Buzzing
ELV
(Lutron)
DVELV-303P 1 - 18 97% - 4%
ELV
(Lutron)
HQRD-6NA 1-10 96%-2%
Dimming Module
(Lutron)
HW/LP-RPM-4A-120 1 - 10 100% - 15% High and low-end trim required
Dimming Module
(Lutron)
HW/LP-RPM-4U-120 1 - 10 100% - 13% High and low-end trim required
Incandescent
(Lutron)
MA-600-WH Not Recommended Not Recommended Flicker at low end
ELV
(Lutron)
MRF2-6ELV-120-WH 1 - 18 98% - 2%
ELV
(Lutron)
NTELV-600-WH 1 - 18 98% - 8%
ELV
(Lutron)
NVELV-600-WH 1 - 18 94% - 10%
ELV
(Lutron)
SELV-600-WH 1 - 18 94% - 4%
Dimming Module
(Vantage)
EDIMMOD Min 1 96% - 10% Consult dimmer company for max fixtures per dimmer. Recommend PWM, reverse phase.
Dimming Module
(Vantage)
RDR4 Min 2 100% - 2% Consult dimmer company for max fixtures per dimmer. Recommend PWM, reverse phase.
Dimming Module
(Vantage)
SDM12-EM Min 2 95% - 7% Consult dimmer company for max fixtures per dimmer. Recommend PWM, reverse phase.

ELEMENT 3" Hi Lume Driver- 2 wire dimming only*
DIMMER PART NUMBER FIXTURES PER DIMMER MEASURED LIGHT
OUTPUT RANGE
COMMENTS
GRAFIK Eye 3000
(Lutron)
GRX-3100, GRX-3500 1-10 (per output) 100-1% Set load type before adjusting low-end trim
HomeWorks QS 1000W(LED)
(Lutron)
HQRD-10ND 1-13 100-1% Set load type before adjusting low-end trim
HomeWorks QS adaptive dimmer
(Lutron)
HQRD-6NA 1-8 100-1% Set load type before adjusting low-end trim
HomeWorks QS 600W (LED)
(Lutron)
HQRD-6ND 1-8 100-1% Set load type before adjusting low-end trim
HomeWorks QS WPM (LED)
(Lutron)
HQRJ-WPM-6D-120 1-10 (per output) 100-1% Set load type before adjusting low-end trim
HomeWorks 1000W dimmer
(Lutron)
HRD-10ND, HWD-10ND 1-13 100-1%
HomeWorks 600W dimmer
(Lutron)
HRD-6ND 1-8 100-1%
HomeWorks WPM
(Lutron)
HWI-WPM-6D-120 1-10 (per output) 100-1%
RPM-4A module (LCP, HomeWorks, GRAFIK Systems, Quantum) (LED)
(Lutron)
HW-RPM-4A-120[br]LP-RPM-4A-120 1-13 (per output) 100-1% Set load type before adjusting low-end trim
RPM-4U module (LCP, HomeWorks, GRAFIK Systems, Quantum) (LED)
(Lutron)
HW-RPM-4U-120[br]LP-RPM-4U-120 1-10 (per output) 100-1% Set load type before adjusting low-end trim
Maestro Wireless
(Lutron)
MRF2-6nd-120 1-8 100-1% Do Not Use, Low Level Humming
Nova T
(Lutron)
NTLV-600-CPN0199 1-8 100-1%
GRAFIK Eye QS
(Lutron)
QSGR, QSGRJ 1-10 (per output) 100-1% Set load type before adjusting low-end trim
RadioRA 1000W
(Lutron)
RA-10ND 1-13 100-1%
RadioRA 600W
(Lutron)
RA-6ND 1-8 100-1%
RadioRa 2 1000W
(Lutron)
RRD-10ND 1-13 100-1%
Radio Ra 2 adaptive dimmer
(Lutron)
RRD-6NA 1-8 100-1%
Stanza
(Lutron)
SZ-6ND 1-8 100-1%
