Product Information

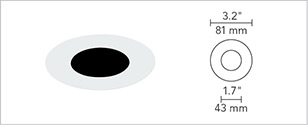

3" LED ULTRA-SHALLOW FIXED DOWNLIGHT

Small aperture LED downlight with architectural appearance housed in an ultra-shallow 2" above the ceiling housing. LED module and optics are modular for ease of replacement. Wood ceiling option allows for a smooth, flangeless appearance using any flangeless trim.

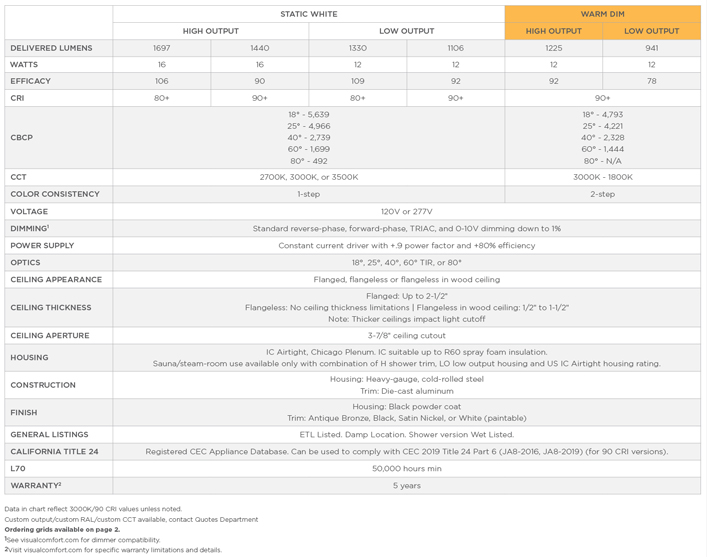

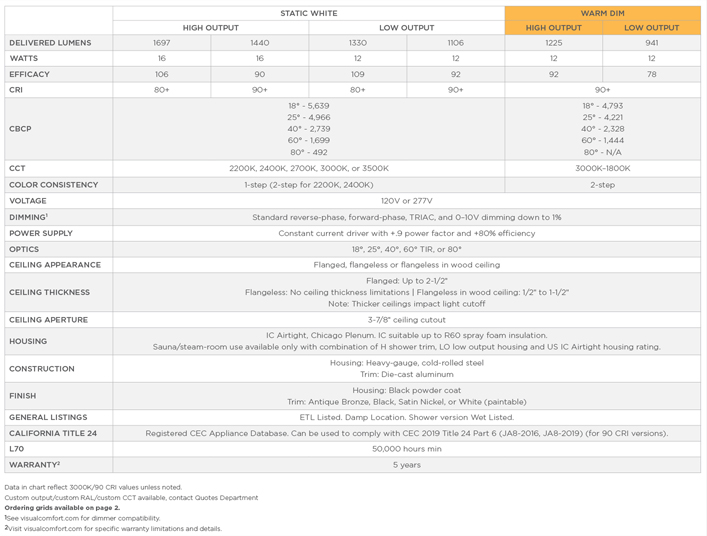

Specification Chart



Trims

Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.


SQUARE TRIMS

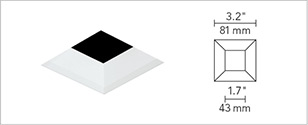

FLANGELESS BEVEL

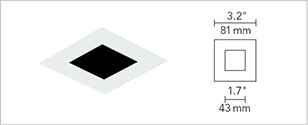

FLANGELESS FLAT

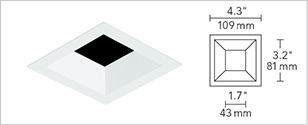

FLANGED BEVEL


FLANGED FLAT

ROUND TRIMS

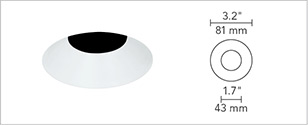

FLANGELESS BEVEL


FLANGELESS FLAT

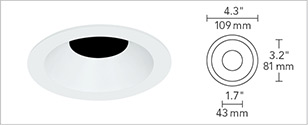

FLANGED BEVEL

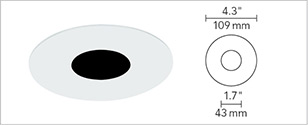

FLANGED FLAT


Trim-Mounted Reflectors

ELEMENT Specular Reflectors reduce glare while creating a clean, quiet ceiling appearance. Available finishes include Anodized Gold for a decorative accent, or Anodized Black for a truly silent ceiling look. These beautiful trim accessories have been specifically designed to minimize any effect on light performance, color, and output.
  • - Can be easily installed or removed
  • - Mounts to existing trim
  • - Compatible with Fixed and Adjustable Housings
  • - Finish Options: Anodized Gold (G) or Anodized Black (B)




shown in gold
(below ceiling view)

shown in gold
(below ceiling view)

black reflector insert

shown in gold
(trim mounted)



Click here to download the Reflectors specification sheet.

Housings

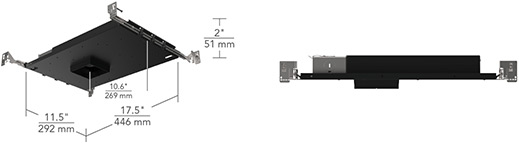

CHICAGO PLENUM ULTRA-SHALLOW

ULTRA-SHALLOW IC/NON-IC AIRTIGHT

Flangeless Installation

Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.



Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).


Mount wall board to ceiling and walls.




Attach plaster plate to the aperture using supplied hardware.


Skim coat around the plaster plate and up to the aperture for a seamless appearance.

Applications

International Association of Lighting Designers ISO - International Organization for Standards Energy Star Rated
