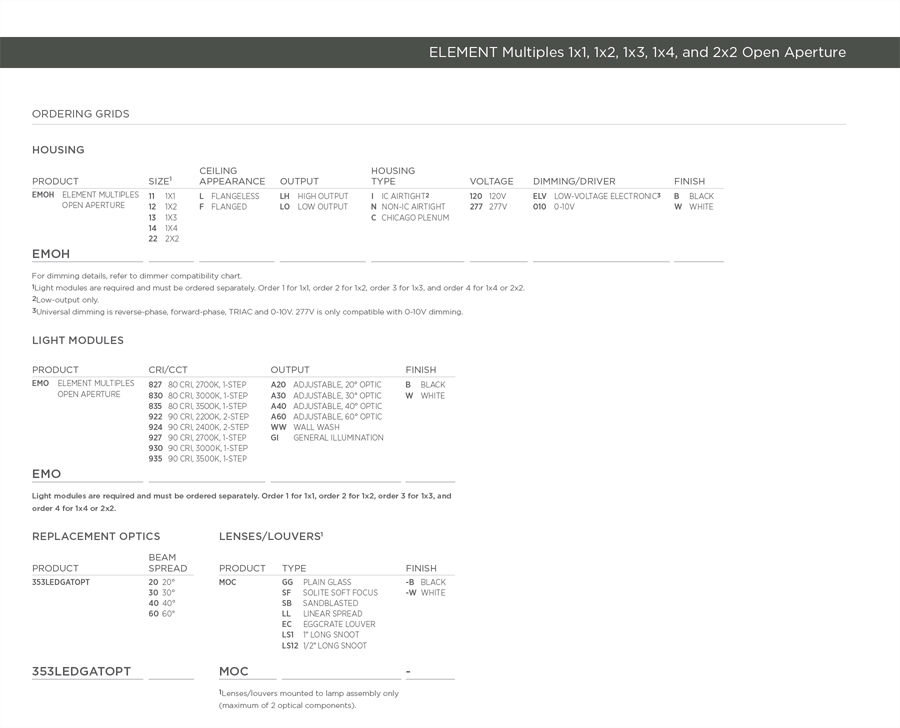

full ordering grid
dimming
installation
applications gallery
how to buy
4" LED Low-Profile Adjustable Downlight
Product Information
4" LED LOW-PROFILE ADJUSTABLE DOWNLIGHT

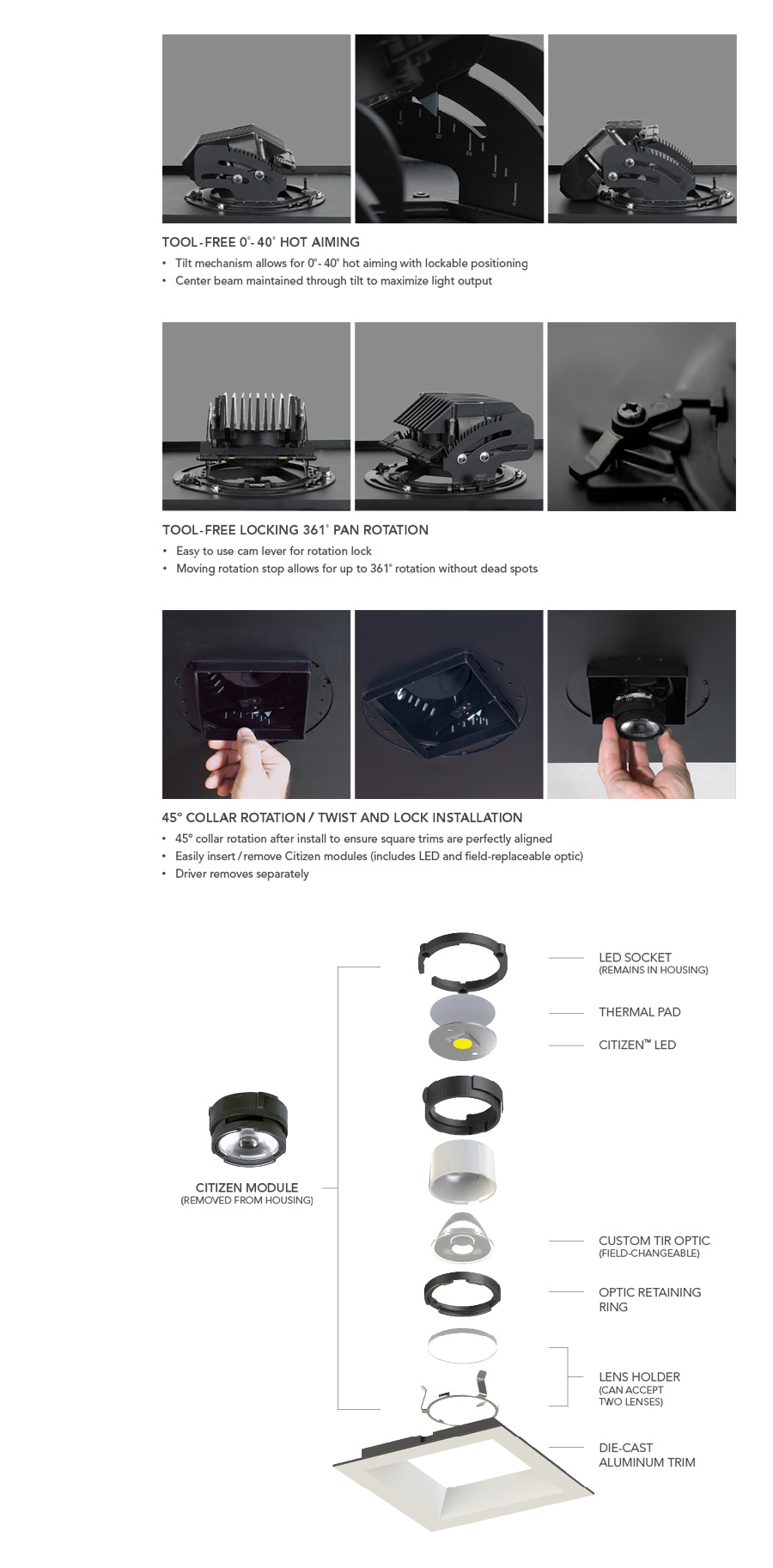

This specification grade low-profile adjustable LED downlight delivers high performance for ultra-shallow ceiling plenum installations while maintaining a beautiful architectural ceiling appearance. The 4” depth housing utilizes the same trims as the rest of the ELEMENT 4” Series, so that they can be used together in the same space yet remain undetectable below the ceiling. Ideal for space constrained environments such as elevators and healthcare soffits. Complete adjustability allows for lockable hot aiming with 0°-40° tilt and 361° rotation, eliminating dead spots. A standard, universal Non-IC/Chicago Plenum housing simplifies ordering.

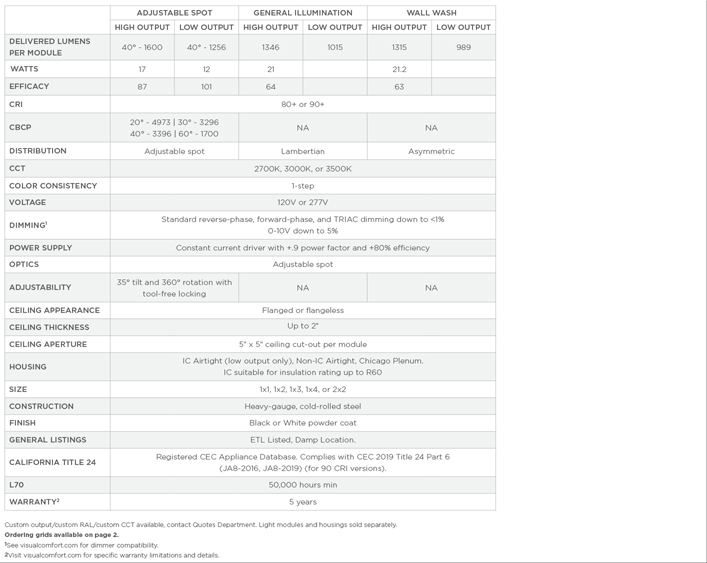

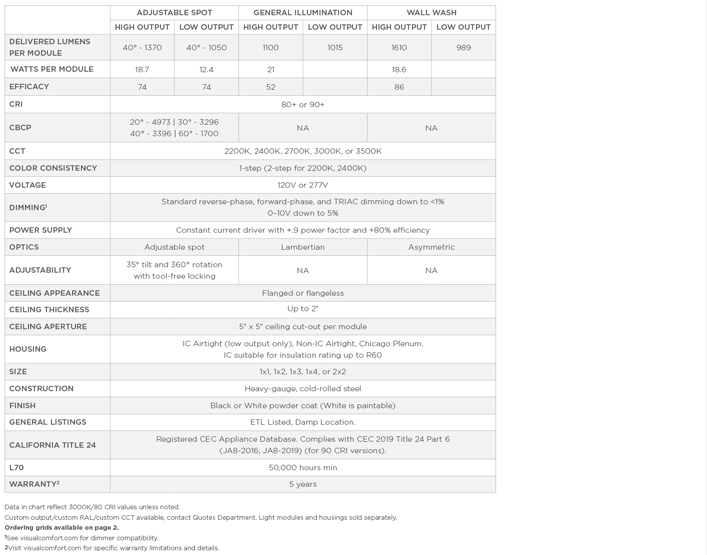

Specification Chart
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.
Finishes available in antique bronze, black, satin nickel, white (paintable).
Flangeless trim units (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.

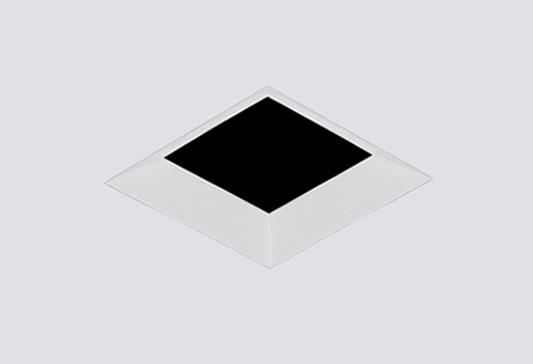

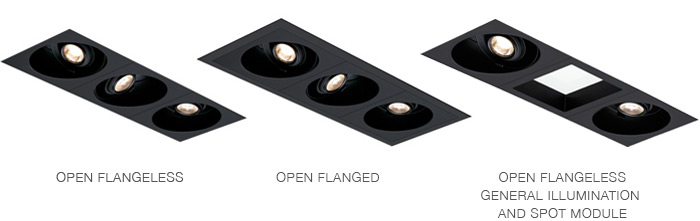

SQUARE TRIMS FLANGELESS BEVEL  FLANGELESS FLAT  FLANGED BEVEL  FLANGED FLAT |
ROUND TRIMS FLANGELESS BEVEL  FLANGELESS FLAT  FLANGED BEVEL  FLANGED FLAT |
AVAILABLE FINISHES
Flangeless trim units (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.
Trim-Mounted Reflectors
ELEMENT Specular Reflectors reduce glare while creating a clean, quiet ceiling appearance.
Available finishes include Anodized Gold for a decorative accent, or Anodized Black for a truly silent ceiling look.
These beautiful trim accessories have been specifically designed to minimize any effect on light performance, color, and output.
- - Can be easily installed or removed
- - Mounts to existing trim
- - Compatible with Fixed and Adjustable Housings
- - Finish Options: Anodized Gold (G) or Anodized Black (B)
shown in gold
(below ceiling view)
shown in gold
(below ceiling view)
black reflector insert
shown in gold
(trim mounted)
Click here to download the Reflectors specification sheet.
Housings

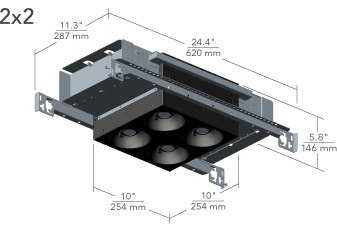

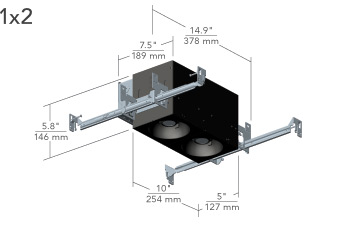

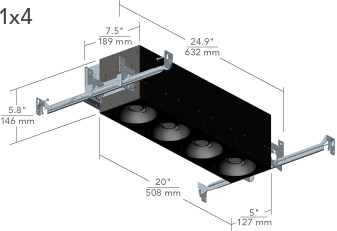

 LOW PROFILE CHICAGO PLENUM
|

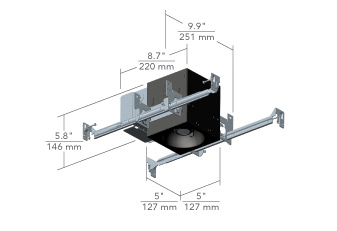

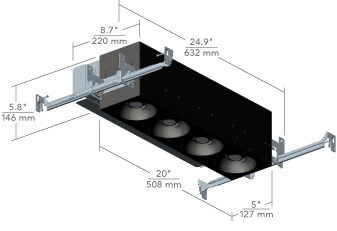

 LOW PROFILE NON-IC AIRTIGHT
|
Dimming
| ELEMENT 4" | ||||
|---|---|---|---|---|
| DIMMER | PART NUMBER | FIXTURES PER DIMMER |
MEASURED LIGHT OUTPUT RANGE |
COMMENTS |
| Incandescent (Lutron) |
DV-600P-WH | 1 - 2 | 98% - 5% | |
| ELV (Lutron) |
DVCL-153P-WH | Not Recommended | Not Recommended | Buzzing |
| ELV (Lutron) |
DVELV-303P | 1 - 12 | 95% - 10% | |
| ELV (Lutron) |
HQRD-6NA | 1-10 | 96%-2% | |
| Incandescent (Lutron) |
MA-600-WH | Not Recommended | Not Recommended | Flicker at low end |
| ELV (Lutron) |
MRF2-6ELV-120-WH | 1 - 12 | 96% - 2% | |
| ELV (Lutron) |
NTELV-600-WH | 1 - 12 | 96% - 15% | |
| ELV (Lutron) |
NVELV-600-WH | 1 - 12 | 94% - 20% | |
| ELV (Lutron) |
SELV-600-WH | 1 - 12 | 94% - 10% | |
Flangeless Installation
Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.
Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).
Tighten four allen screws to engage side springs, securing plaster plate to ceiling and housing aperture.
Plaster plate includes cardboard insert to prevent mudding inside aperture and provide uniform ceiling appearance.
Sand and paint ceiling and insert trim.
