![4" LED Pro Series Fixed](/Content/Images/Products/element_4.png)
4" LED PRO SERIES FIXED
product informationtrims
finishes
housings
full ordering grid
installation
applications gallery
how to buy
![](/i//ELEMENT/products/large/4_led_pro_series_fixed.jpg)

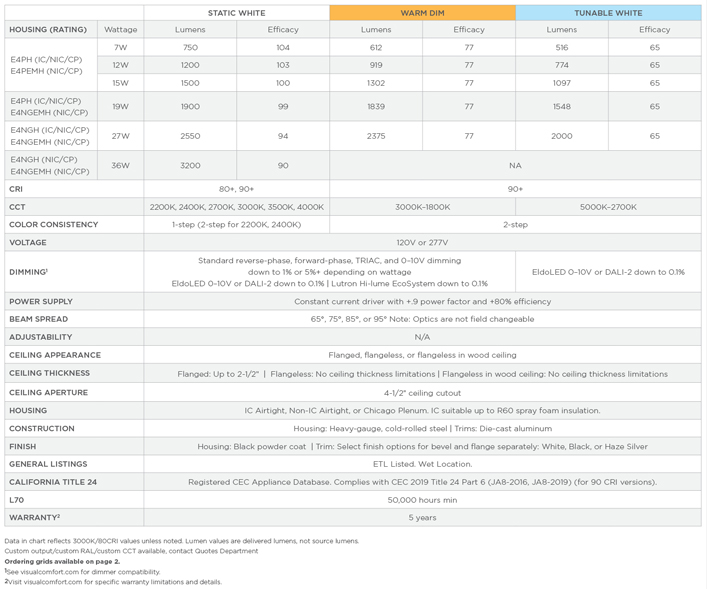

4" LED Pro Series Fixed
downloads
spec sheet
instruction sheets
IES files
REVIT file
Dimmer Compatibility
"Why ELEMENT" Downlight Brochure
spec sheet
instruction sheets
Instruction Sheets
- 4" Pro Series E4PH Housing (Faixed)
- 4" Pro Series E4PH Housing (Fixed)(Emergency)
- 4" Pro Series Housing for Flangeless in Wood Ceiling Wall Wash)
- 4" Pro Series E4NGH Housing (Fixed/Wall Wash)
- 4" Pro Series E4NGH housing (Fixed/Wall Wash)(Emergency)
- Flanged light module for 4" Pro Series (Fixed)
- Flanged light module for 4" Pro Series (Fixed)(Emergency)
- Flangeless light module for 4" Pro Series (Fixed)
- Flangeless Light Module for 4" Pro Series (Fixed)(Emergency)
- 4” Pro Premium Hanger Bar for Fixed/Wall Wash
- Round or Square Element 4" Pro Series Housing in Wood Ceilings
- Round or Square Element 4" Pro Series Housing with Emergency Battery Backup in Wood Ceilings
IES Files
- 4" Pro Series Fixed 65° beam, 3000K, 80CRI, 12W
- 4" Pro Series Fixed 65° beam, 3000K, 80CRI, 15W
- 4" Pro Series Fixed 65° beam, 3000K, 80CRI, 27W
- 4" Pro Series Fixed 75° beam, 3000K, 80CRI, 12W
- 4" Pro Series Fixed 75° beam, 3000K, 80CRI, 15W
- 4" Pro Series Fixed 75° beam, 3000K, 80CRI, 27W
- 4" Pro Series Fixed 85° beam, 2700K, 90CRI, 15W
- 4" Pro Series Fixed 85° beam, 2700K, 90CRI, 27W
- 4" Pro Series Fixed 85° beam, 3000K, 80CRI, 12W
- 4" Pro Series Fixed 85° beam, 3000K, 80CRI, 15W
- 4" Pro Series Fixed 85° beam, 3000K, 80CRI, 19W
- 4" Pro Series Fixed 85° beam, 3000K, 80CRI, 27W
- 4" Pro Series Fixed 85° beam, 3000K, 80CRI, 35W
- 4" Pro Series Fixed 85° beam, 3000K, 80CRI, 7W
- 4" Pro Series Fixed 85° beam, 3000K, 90CRI, 15W
- 4" Pro Series Fixed 85° beam, 3000K, 90CRI, 27W
- 4" Pro Series Fixed 85° beam, 3500K, 80CRI, 15W
- 4" Pro Series Fixed 85° beam, 3500K, 80CRI, 27W
- 4" Pro Series Fixed 85° beam, 3500K, 90CRI, 15W
- 4" Pro Series Fixed 85° beam, 3500K, 90CRI, 27W
- 4" Pro Series Fixed 85° beam, 4000K, 80CRI, 15W
- 4" Pro Series Fixed 85° beam, 4000K, 80CRI, 27W
- 4" Pro Series Fixed 85° beam, 4000K, 90CRI, 15W
- 4" Pro Series Fixed 85° beam, 4000K, 90CRI, 27W
- 4" Pro Series Fixed 95° beam, 3000K, 80CRI, 12W
- 4" Pro Series Fixed 95° beam, 3000K, 80CRI, 15W
- 4" Pro Series Fixed 95° beam, 3000K, 80CRI, 27W
Dimmer Compatibility
"Why ELEMENT" Downlight Brochure

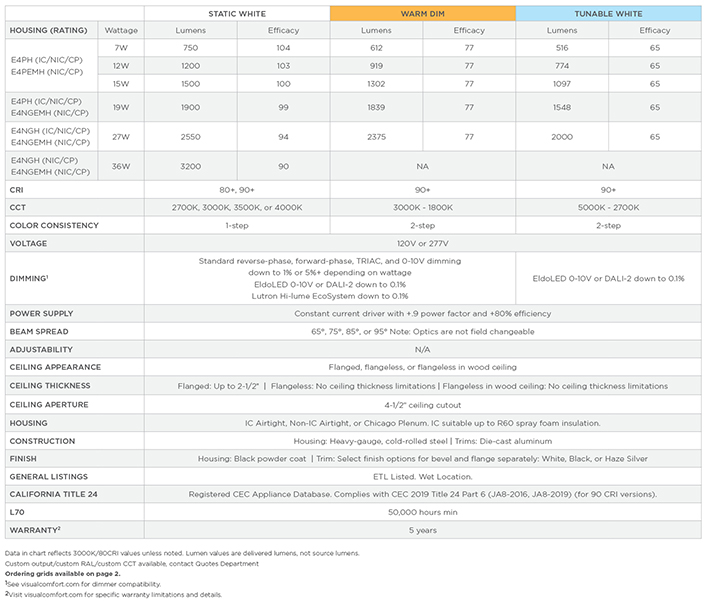

Product Information
4" LED PRO SERIES FIXED
The Element 4" Pro Series Fixed downlight introduces a budget-friendly, specification-grade downlight with wide-angle distribution for commercial applications. Engineered with a precision diffuser and Solite soft focus lens that eliminates hot spots, direct visibility into the housing, and delivers a clean aperture and ceiling aesthetic. The Element 4" Pro Series is offered in a variety of options, including output, beam spreads and the choice of Static White, Warm Dim or Tunable
White to meet any commercial requirements.
Budget-Friendly Solution for Commercial Spaces
High-Output and Wide-Angle Beam Spreads Engineered for Large Spaces
1-Step Standard
Standard Triac/ELV Dimming Down to 1%
Lutron/eldoLED Options
![LED / 5-Year Warranty](/Content/Images/Products/led-5-year.png)
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.

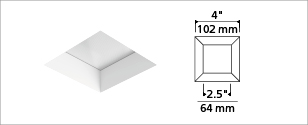

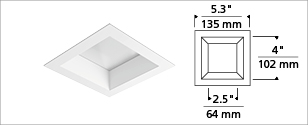

SQUARE TRIMS![]() FLANGELESS REGRESSED DOWNLIGHT GENERAL ILLUMINATION ![]() FLANGED REGRESSED DOWNLIGHT GENERAL ILLUMINATION |

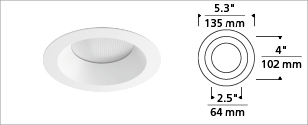

ROUND TRIMS![]() FLANGELESS REGRESSED DOWNLIGHT GENERAL ILLUMINATION ![]() FLANGED REGRESSED DOWNLIGHT GENERAL ILLUMINATION |
No Flange | White Flange | Black Flange | Haze Silver Flange |
---|---|---|---|
![]() Haze Silver Bevel |
![]() White Flange, Haze Silver Bevel |
![]() Black Flange, Haze Silver Bevel |
![]() Haze Silver Flange, Haze Silver Bevel |
![]() Black Bevel |
![]() White Flange, Black Bevel |
![]() Black Flange, Black Bevel |
|
![]() White Bevel |
![]() White Flange, White Bevel |
![]() Black Flange, White Bevel |
Housings

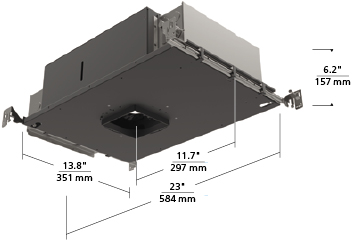

![]() E4NGEMH
EMERGENCY BATTERY NON-IC AIRTIGHT |

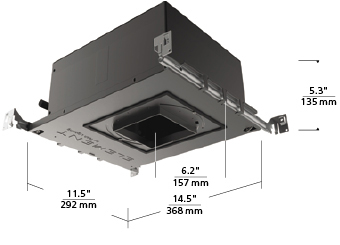

![]() E4NGH
IC AIRTIGHT / NON-IC / CHICAGO PLENUM |

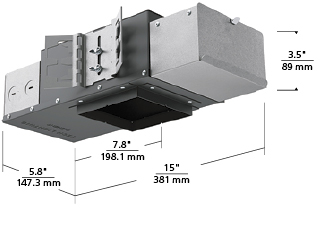

![]() E4PEMH
EMERGENCY BATTERY NON-IC AIRTIGHT |

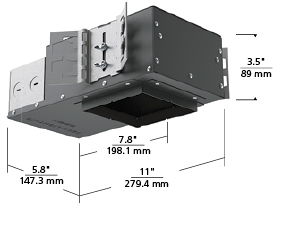

![]() E4PH
IC AIRTIGHT / NON-IC / CHICAGO PLENUM |
Flangeless Installation
Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.![](/i/ELEMENT/web/Installation_Guides/4_6_step1.jpg)
Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).
![](/i/ELEMENT/web/Installation_Guides/4_6_step2.jpg)
Tighten four allen screws to engage side springs, securing plaster plate to ceiling and housing aperture.
![](/i/ELEMENT/web/Installation_Guides/4_6_step3.jpg)
Plaster plate includes cardboard insert to prevent mudding inside aperture and provide uniform ceiling appearance.
![](/i/ELEMENT/web/Installation_Guides/4_6_step4.jpg)
Sand and paint ceiling and insert trim.
