Product Information
4" LED PRO SERIES WALL WASH
The Element 4" Pro Series Wall Wash sets a new standard for best-in-class performance. Creating a beautifully uniform high output flood of light without scalloping or hot spots. With even illumination from top to bottom of the wall, the Element 4" Pro Series Wall Wash complements the Element 4" Pro Series Fixed and Adjustable downlights for any commercial space and is available in a variety of options, including output, and the choice of Static White, Warm Dim or Tunable White.

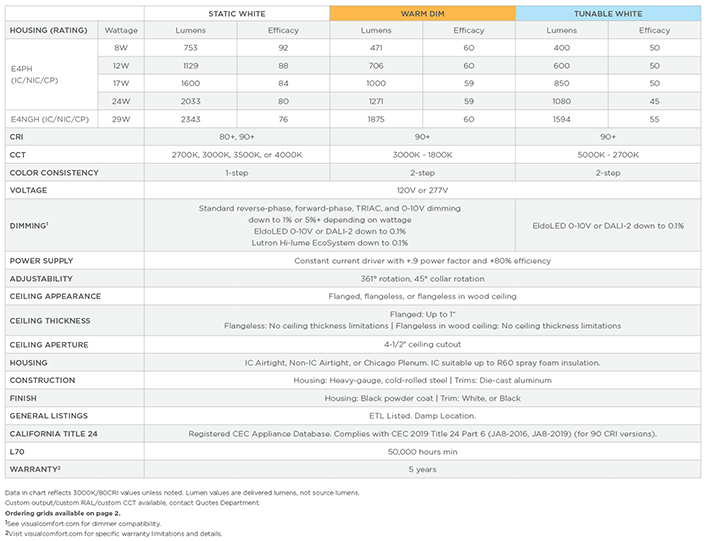

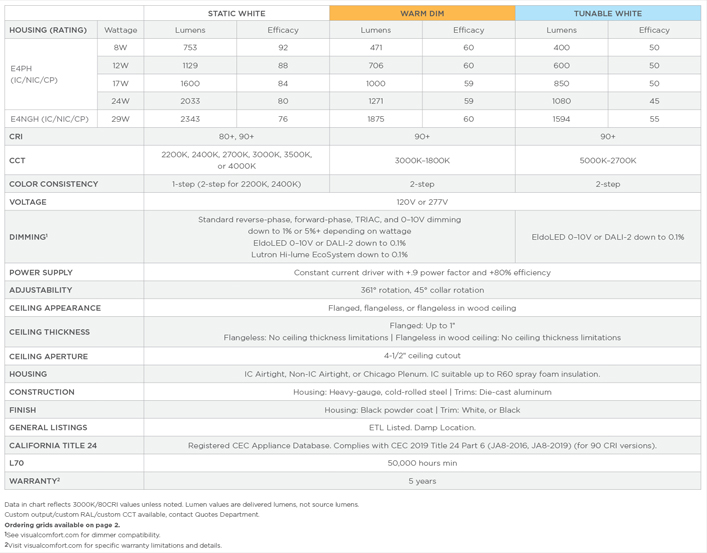

Luminit Tuning Film, Two Directions Even Vertical and Horizontal Illumination of Wall High Efficacy Output: >76 Lumens per Watt (Static White) 1-step static white, 2-step warm dim and tunable white Lutron/eldoLED options
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.

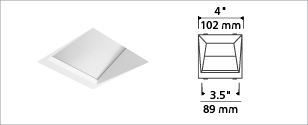

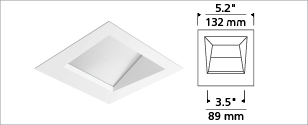

SQUARE TRIMSFLANGELESS WALL WASH FLANGED WALL WASH |

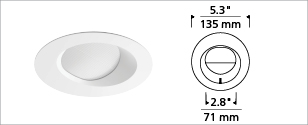

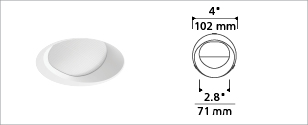

ROUND TRIMSFLANGELESS WALL WASH FLANGED WALL WASH |
Housings

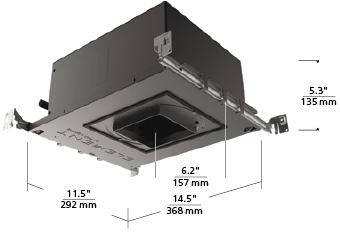

E4NGH
IC AIRTIGHT / NON-IC / CHICAGO PLENUM |

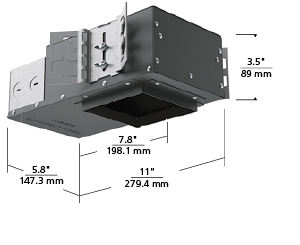

E4PH
IC AIRTIGHT / NON-IC / CHICAGO PLENUM |
Flangeless Installation
Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).
Tighten four allen screws to engage side springs, securing plaster plate to ceiling and housing aperture.
Plaster plate includes cardboard insert to prevent mudding inside aperture and provide uniform ceiling appearance.
Sand and paint ceiling and insert trim.
