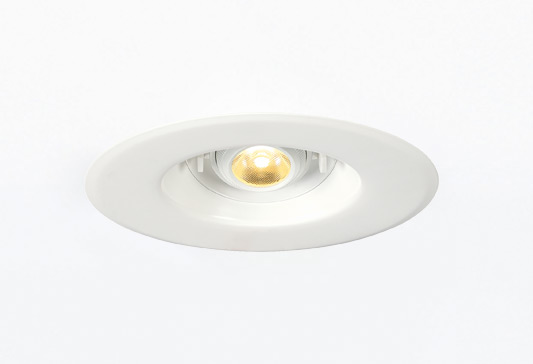

6" LED ADJUSTABLE RETROFIT DOWNLIGHT

The ELEMENT 6" LED Adjustable Retrofit offers a fully engineered solution to upgrade standard 6" recessed downlights with the latest LED technology and efficiency. This dimmable 6" adjustable retrofit offers easy, user installation and features our patent-pending dome assembly with 0-35° tilt/360° rotation hot-aiming and tool-free locking systems, perfect for task and accent applications. Offered with a standard 40° beam spread, as well as output and color options at 90 CRI, the ELEMENT 6" LED Retrofit features a closed dome design for a clean aesthetic.

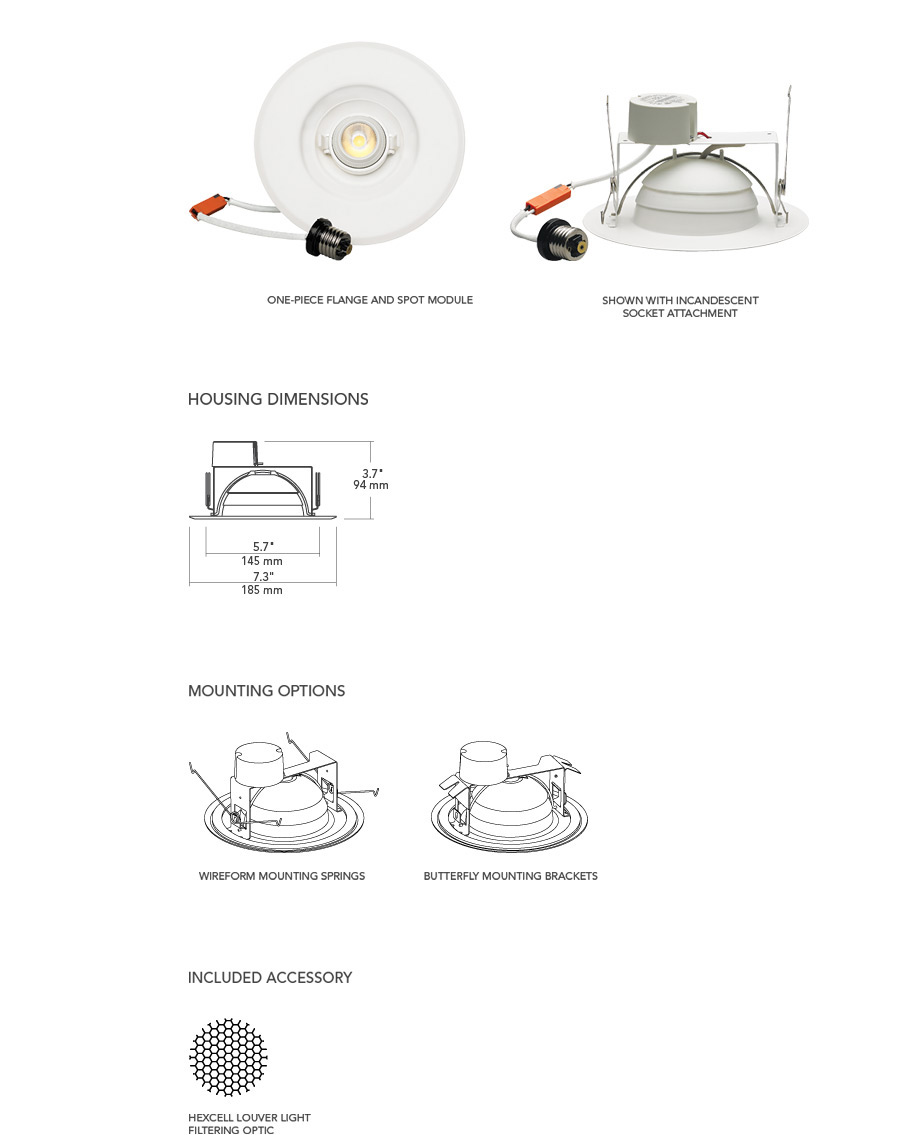

Specification Chart

Product Features
ELEMENT 6" LED Adjustable Retrofit
DIMMER PART NUMBER FIXTURES PER DIMMER MEASURED LIGHT
OUTPUT RANGE
COMMENTS
Incandescent
(Cooper)
DAL06P 1-20 100% - 1% Light flickers at low end of dimming.
Incandescent
(Cooper)
DLC03P 1-20 100% - 1% Light flickers at low end of dimming.
Incandescent
(Cooper)
SLC03P 1-20 100% - 0% Light flickers at low end of dimming.
Incandescent
(Forbes & Lomax)
FLR603P 4-20 100% - 7% Light flickers at low end of dimming.
Incandescent
(Legrand)
H703PTVW 1-25 100% - 10% Light flickers at low end of dimming.
Incandescent
(Legrand)
HCL453PW 1-25 100% - 12% Light flickers at low end of dimming.
Incandescent
(Leviton)
6161 1-21 100% - 13% Light flickers at low end of dimming.
Incandescent
(Leviton)
6631 1-25 100% - 0% Light flickers at low end of dimming.
Incandescent
(Leviton)
6633-P 1-25 100% - 1% Light flickers at low end of dimming.
Incandescent
(Leviton)
6673-10W 1-15 100% - 8% Light flickers at low end of dimming.
Incandescent
(Leviton)
6683-IW 1-25 100% - 2% Light flickers at low end of dimming.
ELV
(Leviton)
IPE04 1-16 100% - 4% Recommended
Incandescent
(Leviton)
IPI06-1LZ 1-25 100% - 0% Light flickers at low end of dimming.
ELV
(Leviton)
VPE06 1-25 100% - 6% Recommended
Incandescent
(Leviton)
VPI06 Doesn't work Doesn't work Doesn't work
Incandescent
(Lightolier)
ZP260QEW Consult Dimmer Co. 99%-4% Light flickers at low end of dimming.
Incandescent
(Lutron)
AY-600P 1-26 100% - 12% Light flickers at low end of dimming.
Incandescent
(Lutron)
CT103P 1-40 100% - 7% Light flickers at low end of dimming.
CL
(Lutron)
CTCL-153P 1-10 98% - 25% Low level flicker is better than incandescent dimmers but not as good as ELV.
Incandescent
(Lutron)
D-600P 1-25 99%-0% Light flickers at low end of dimming.
Incandescent
(Lutron)
DV-600P 1-25 100% - 5% Light flickers at low end of dimming.
Incandescent
(Lutron)
DVCL-153P 1-10 100% - 5% Light flickers at low end of dimming.
CL
(Lutron)
DVCL-153P 1-10 98% - 17% Low level flicker is better than incandescent dimmers but not as good as ELV.
ELV
(Lutron)
DVELV-300P 3-12 94% - 7% Recommended
ELV
(Lutron)
DVELV-303P 3-12 94% - 7% Recommended
ELV
(Lutron)
FAELV-500 3-21 100% - 8% Recommended
Incandescent
(Lutron)
GL-600P 1-25 100% - 7% Light flickers at low end of dimming.
ELV
(Lutron)
HQRD-6NA 3-25 97% - 1% Recommended
Incandescent
(Lutron)
LG-600P 1-25 99% - 5% Light flickers at low end of dimming.
CL
(Lutron)
LGCL-153P 1-10 97%-8% Low level flicker is better than incandescent dimmers but not as good as ELV.
Incandescent
(Lutron)
MA-600 3-25 99% -2% Light flickers at low end of dimming.
CL
(Lutron)
MACL-153M 1-10 94% - 9% Low level flicker is better than incandescent dimmers but not as good as ELV.
ELV
(Lutron)
MAELV-600 3-25 100% - 1% Recommended
Incandescent
(Lutron)
MAW-600 3-25 99% -2% Light flickers at low end of dimming.
Incandescent
(Lutron)
MAW-600 3-25 99% -2% Light flickers at low end of dimming.
ELV
(Lutron)
MRF2-6ELV-120 3-25 97% - 1% Recommended
ELV
(Lutron)
NTELV-600 3-25 96-10% Recommended
ELV
(Lutron)
NTELV-600 3-25 96-10% Recommended
ELV
(Lutron)
RRD-6NA 1-25 98% - 1% Recommended
Incandescent
(Lutron)
S600P 1-25 100% - 3% Light flickers at low end of dimming.
Incandescent
(Lutron)
S600P 1-25 100% - 3% Light flickers at low end of dimming.
Incandescent
(Lutron)
S-600P 1-25 98% - 8% Light flickers at low end of dimming.
Incandescent
(Lutron)
S-603PG 3-25 86% - 6% Light flickers at low end of dimming.
CL
(Lutron)
SCL-153P 1-10 99% - 6% Low level flicker is better than incandescent dimmers but not as good as ELV.
ELV
(Lutron)
SELV-300P 3-12 93% - 7% Recommended
Incandescent
(Lutron)
TG-600P 1-25 100% - 13% Light flickers at low end of dimming.
CL
(Lutron)
TGCL-153P 1-10 98% - 1% Low level flicker is better than incandescent dimmers but not as good as ELV.
CL
(Lutron)
TGCL-153P 1-10 98% - 1% Low level flicker is better than incandescent dimmers but not as good as ELV.
MANUFACTURER 6" RECESSED MODEL #
Commercial Electric C7ICA
Commercial Electric C7ICR
Commercial Electric C1 CONTRACTOR 6-PACK (CER105)
Commercial Electric H2 CONTRACTOR 6-PACK (CAT7ICRM)
Halo H7RICT
Halo H7ICT
Halo H7ICAT
Halo H7RICAT
Juno TC2
Juno TC2R
Juno IC21
Juno IC22R
Juno IC22
LG Sourcing Inc Y1-RICT
LG Sourcing Inc Y7ICAT
Lightolier 1100 Series Will fit some Lightolier trims using the universal butterfly mounting brackets included with the ELEMENT 6" LED Retrofit. Not compatible with all Lightolier trims. Customer must test a sample first. In many cases, the flange of the Lightolier trim will not be fully covered by the ELEMENT 6" LED Retrofit.
Prescolite DBX / DBXQC
Progress Lighting P821AT
Progress Lighting P87-AT / P87-ATQC
Seagull 11028/ 11028QC
Seagull 1128 / 1128QC
Seagull 11018
Seagull 11019
Seagull 11003
Seagull 11007
Thomas PS1 / PS1 NSP
Utilitech Y1-RICT
