ENTRA™ CL 3" LED Downlight
downloads
spec sheet
instruction sheet
IES files
REVIT file
Dimmer Compatibility
"Why ELEMENT" Downlight Brochure
spec sheet
instruction sheet
IES files
IES Files
- Entra CL 3" LED 12 Watt, 40° beam, Warm Dim, 90CRI, 0° Tilt
- Entra CL 3" LED 12 Watt, Wall Wash, 3000K, 90CRI
- Entra CL 3" LED 15 Watt, Wall Wash, 3000K, 90CRI
- Entra CL 3” LED 12 Watt, 20° beam, 3000K, 90CRI, 0° Tilt
- Entra CL 3” LED 12 Watt, 30° beam, 3000K, 90CRI, 0° Tilt
- Entra CL 3” LED 12 Watt, 40° beam, 2700K, 90CRI, 0° Tilt
- Entra CL 3” LED 12 Watt, 40° beam, 3000K, 90CRI, 0° Tilt
- Entra CL 3” LED 12 Watt, 60° beam, 3000K, 90CRI, 0° Tilt
- Entra CL 3” LED 15 Watt, 20° beam, 3000K, 90CRI, 0° Tilt
- Entra CL 3” LED 15 Watt, 40° beam, 2700K, 90CRI, 0° Tilt
- Entra CL 3” LED 15 Watt, 40° beam, 3000K, 90CRI, 0° Tilt
Dimmer Compatibility
"Why ELEMENT" Downlight Brochure
Product Information
ENTRA CL 3" LED DOWNLIGHT
The ENTRA CL3 LED Adjustable, Fixed and Wall Wash 3” downlights offer a cost-effective alternative for residential, multi-family, hospitality and tenant improvement applications without sacrificing architectural grade aesthetic or quality. Custom engineered for high performance and reliability, ENTRA CL3 is easy to configure with a complete feature set that offers flexibility without an overwhelming list of options. Modules are available with three Static White CCT options, 3000K-1800K warm color dimming, and four interchangeable optics (20°, 30°, 40° and 60°). Trim options include Flanged or Flangeless (includes mud plate) and Round or Square in Satin Silver, Champagne, Black and White finish (White finish is field-paintable).
2700K, 3000K, 3500K, Warm Dim 3000K-1800K
Multiple Output Options
20°, 30°, 40° (included) and 60° interchangeable optics
Flanged or Flangeless Ceiling Appearance
35° Tilt, 360° Rotation Adjustability on Adjustable model
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.

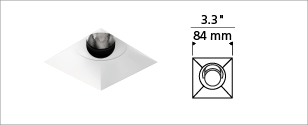

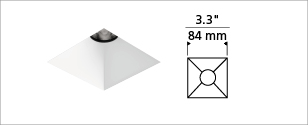

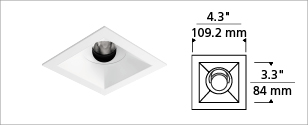

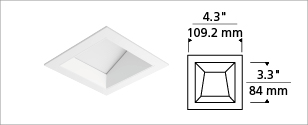

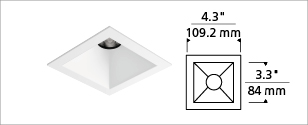

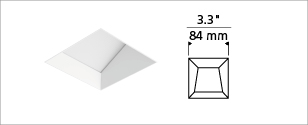

SQUARE TRIMSFLANGELESS ADJUSTABLE FLANGELESS DOWNLIGHT FLANGELESS WALL WASH FLANGED ADJUSTABLE FLANGED DOWNLIGHT FLANGED WALL WASH |

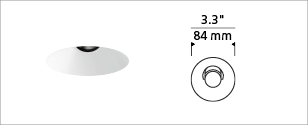

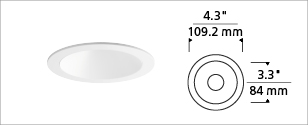

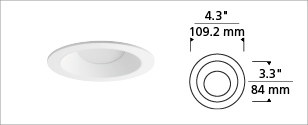

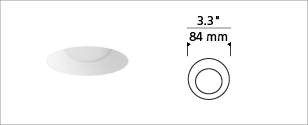

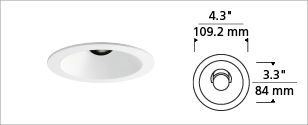

ROUND TRIMSFLANGELESS ADJUSTABLE FLANGELESS DOWNLIGHT FLANGELESS WALL WASH FLANGED ADJUSTABLE FLANGED DOWNLIGHT FLANGED WALL WASH |
White Trim | Black Trim |
---|---|
White Trim, Black Reflector |
Black Trim, Black Reflector |
White Trim, White Reflector |
Black Trim, White Reflector |
White Trim, Champagne Reflector |
Black Trim, Champagne Reflector |
White Trim, Silver Reflector |

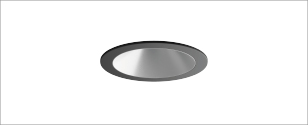

Black Trim, Silver Reflector |

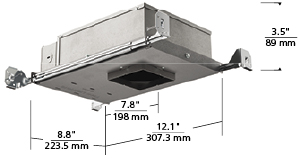

Housings
IC AIRTIGHT/FIRE-RATED/
CHICAGO PLENUM |
