MERGE™ 1.5 Recessed Linear System

Whether being used to highlight architectural elements, enhance a room's size, or deliver well-controlled general illumination, pantent-pending ELEMENT Merge™ 1.5 puts the focus on the room and offers stunning design flexibility. Recessed lines of uniform, glare-free LED light can be designed to make 90° turns in the same plane or perpendicular transitions from ceiling to wall for enhanced architectural interest. To further the utility of this beautifully integrated linear lighting system, spot heads or pendants can be added directly into the channel at any point along its concealed low–voltage bus system for simultaneous accent or task illumination.


DESIGN FEATURES AND OPTIONS:

Glare-free, continuous 1.5-inch channel of LED indirect illumination

Beveled aperture integrates seamlessly with architecture for sleek ceiling to fixture transition

Available flanged, flangeless with drywall, or lay-in (T-Grid) installation

2 ft, 4 ft, 6ft, and 8 ft gangable linear lengths with "L" and wall-to-ceiling connectors all available in IC Airtight housings. Custom linear lengths available between 2' to 6', (consult Quotes Dept.)

Linear channel: Static white with multiple CRI and color temperature options

Optimized for use in 2"x 4" construction

Two spot head options: MERGE™ 1.5 Capsule (coming soon) and MERGE™ 1.5 Drop-Down

Twist-and-lock design allows LED adjustable spot heads to be placed anywhere along the bus channel

FreeJack connector allows the use of any Tech Lighting low-voltage head or pendant

Spots: Multiple CRI, color temperature, and beam spread options

ELEMENT Merge™ 1.5 linear recessed channels are availablein 2', 4', 6' and 8' lengths with a number of connector options for flanged, flangeless, or lay-in installation. Lines of LED light can be designed to make 90° turns or transitions from ceiling to wall for enhanced design interest while adding spot heads for accent and task lighting without adding more light fixtures to the space. Flanged and flangeless versions include aluminum plaster plates for a mudded in look and all linear components feature a beveled aperture to integrate seamlessly with architecture for sleek ceiling to fixture transitions. Custom linear lengths available (between 2' to 6'), consult Quotes Dept.

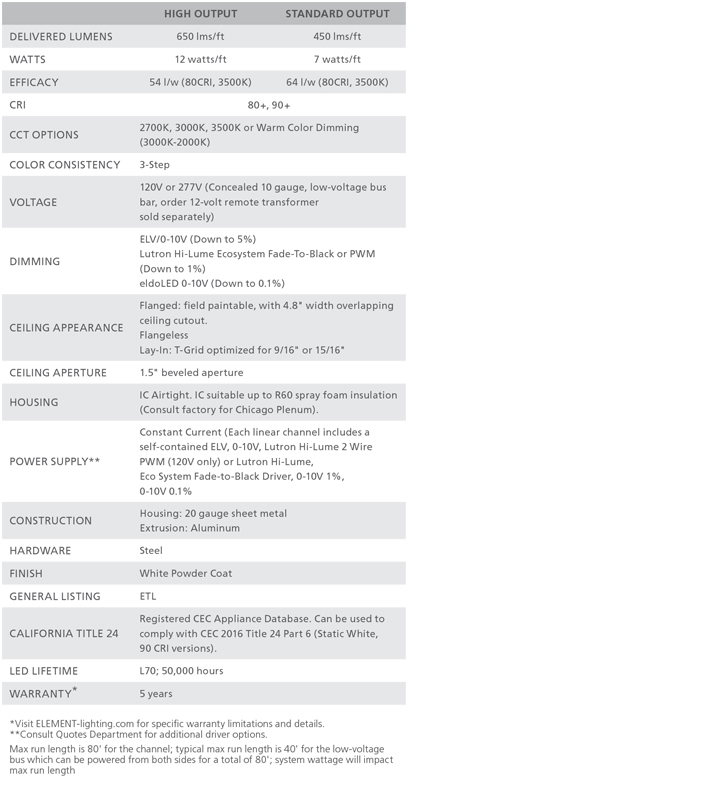

Specification Chart

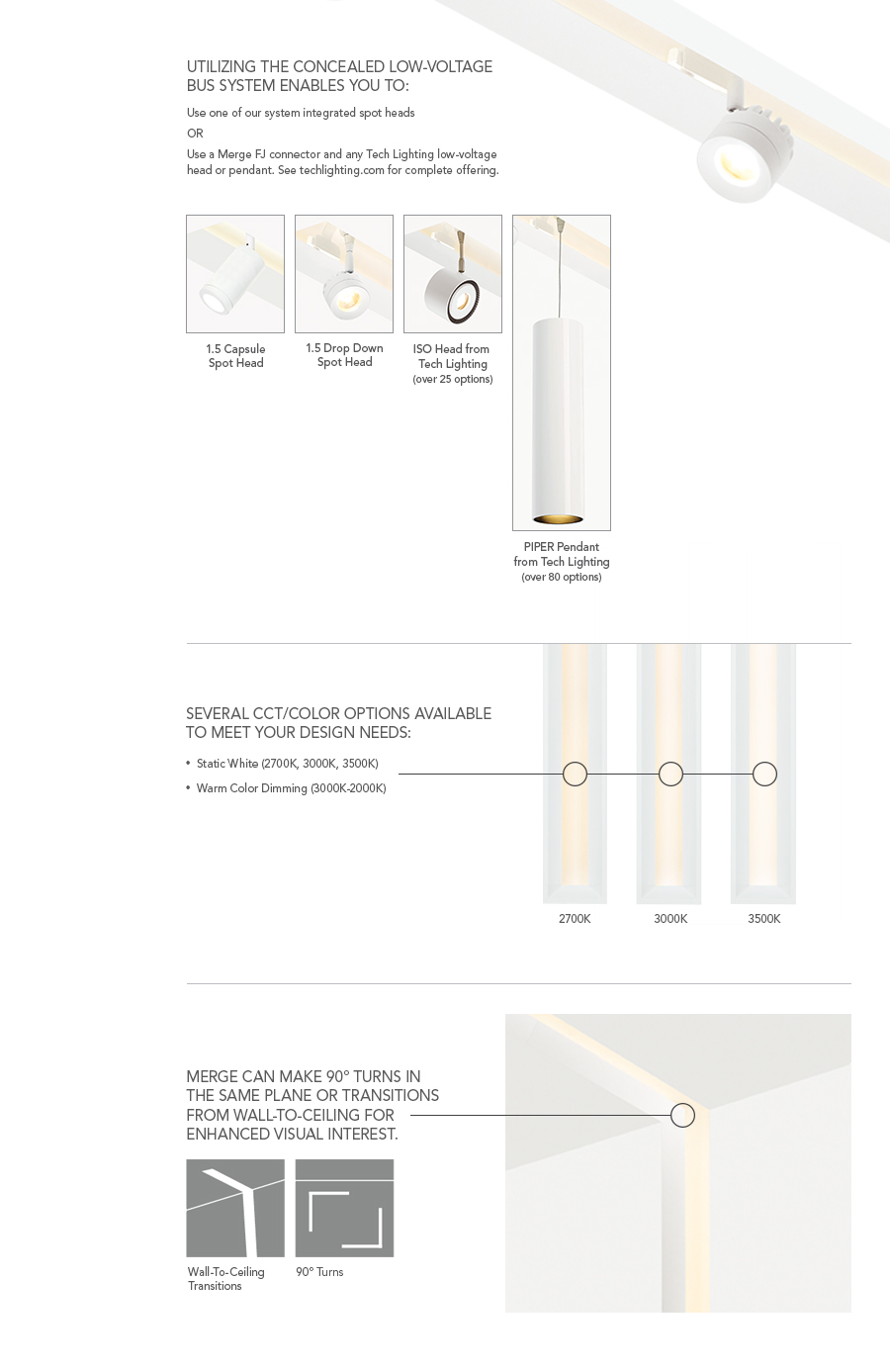

The ELEMENT Merge™ 1.5 low-voltage bus system allows you to simply twist-and-lock LED adjustable spot heads anywhere along the channel for stunning design flexibility. Options for beam spread, mounting, and color temperature allow designers to specify a system tailored to exacting demands. The Merge™ 1.5 Capsule (coming soon), and the Merge™ Drop-Down Spot allow maximum aimability utilizing the Merge FJ connector. For further design options, the FJ connector allows any Tech Lighting low-voltage head or pendant to be mounted from the Merge system making it remarkably versatile.

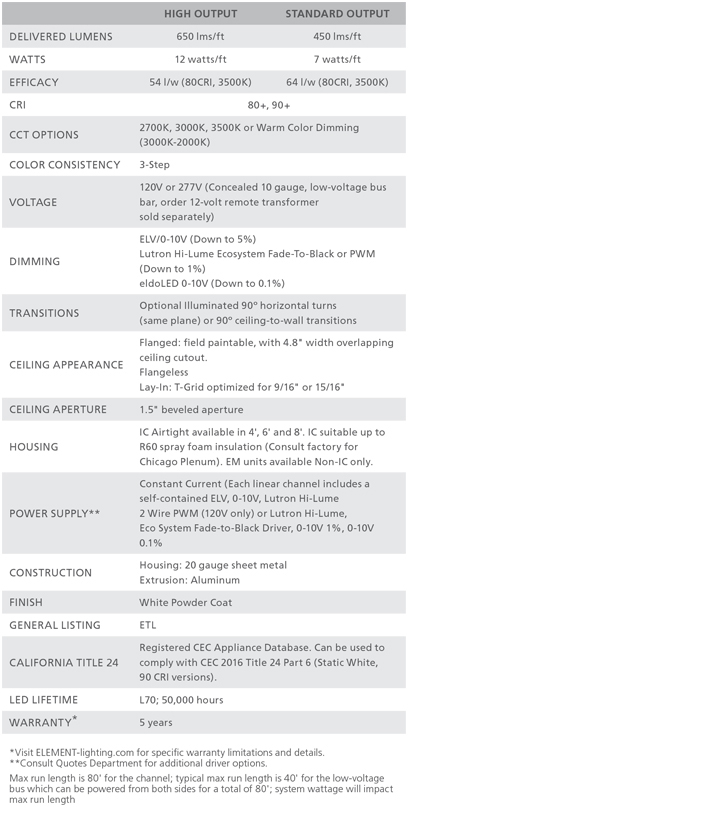

SPECIFICATIONS

The continuous line of light aesthetic created by ELEMENT Merge™ 1.5 system enhanced using either a specifically engineered 90° turn connector or wall-to-ceiling connector. Lines of LED light can be designed to seamlessly make 90° turns or transition from ceiling to wall for enhanced design interest while also allowing the option to add spot heads for accent and task lighting, all without adding more light fixtures to the space.

SPECIFICATIONS

Applications

International Association of Lighting Designers ISO - International Organization for Standards Energy Star Rated
