4" LED Adjustable Downlight


downloads
spec sheet
instruction sheets
IES files
dimming information
lumenetix commissioning tool
"Why ELEMENT" Downlight Brochure


Product Information

4" LED ADJUSTABLE DOWNLIGHT

This specification grade LED downlight offers a wide selection of LED module options to address design requirements in the spaces it illuminates. Featuring ELEMENT’s unique patented high-low lamp positioning feature, the innovative design allows the LED to be positioned closer to the aperture for maximum light output and efficiency or higher to minimize glare and flash on the trim. Additional adjustability allows for tool-free hot aiming and locking including 0º-40º tilt and 361º rotation while always maintaining center beam candle power.

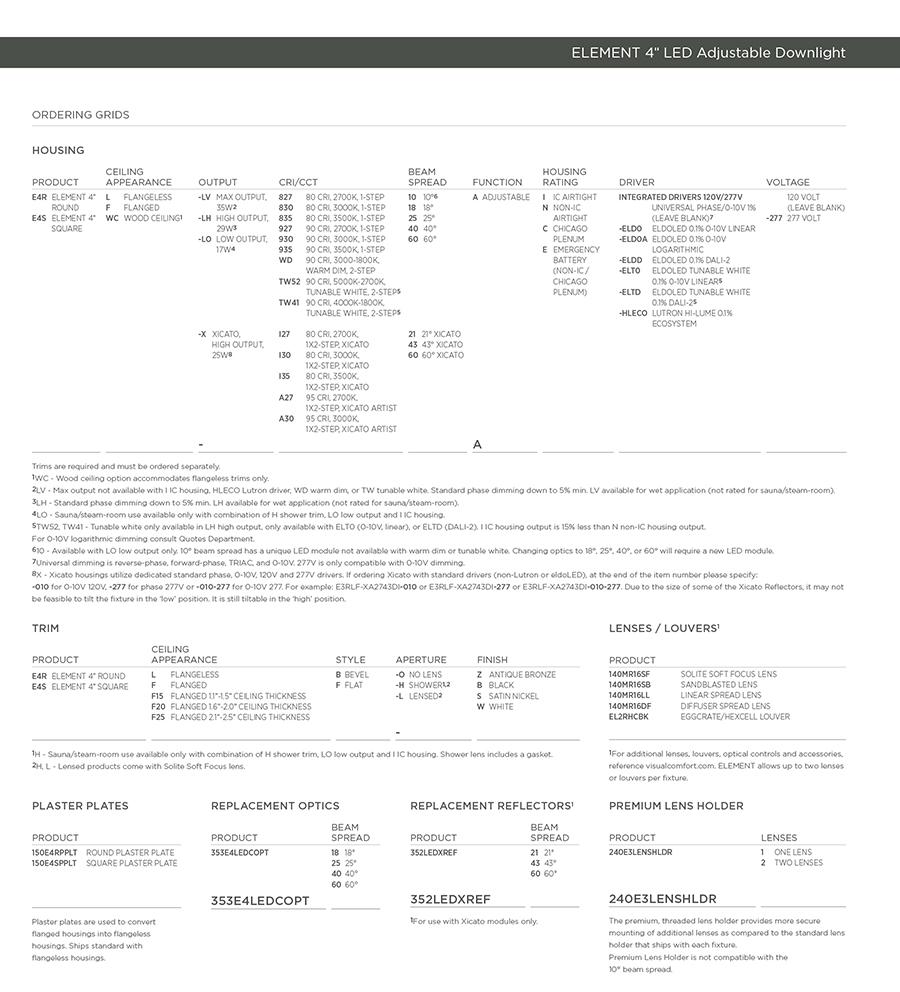

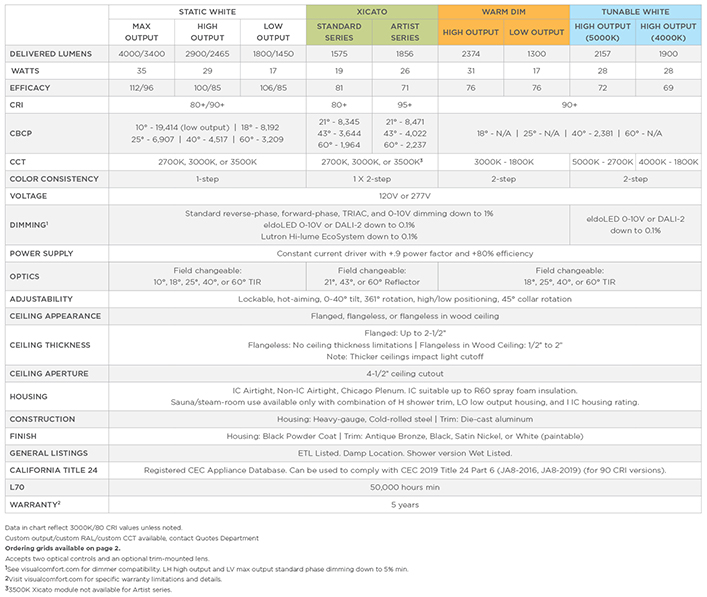

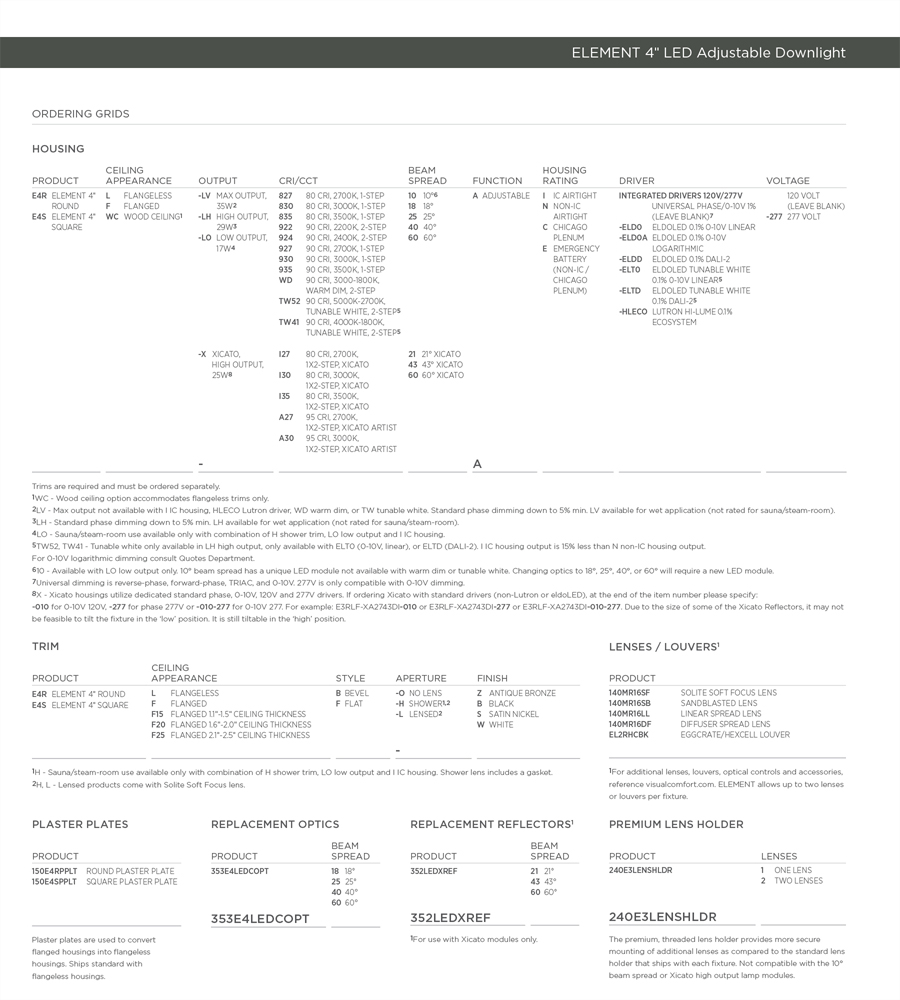

Specification Chart



Product Features

Trims

Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.


SQUARE TRIMS

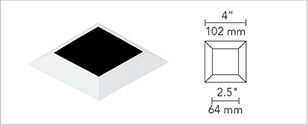

FLANGELESS BEVEL

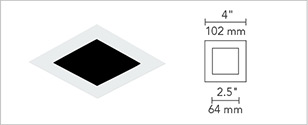

FLANGELESS FLAT

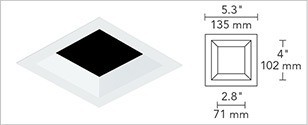

FLANGED BEVEL

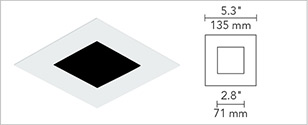

FLANGED FLAT

ROUND TRIMS

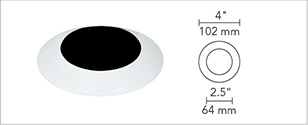

FLANGELESS BEVEL

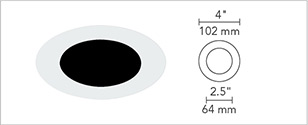

FLANGELESS FLAT

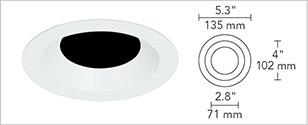

FLANGED BEVEL

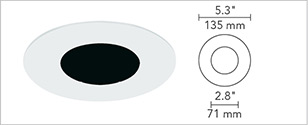

FLANGED FLAT


AVAILABLE FINISHES

Antique Bronze
Black
Satin Nickel
White
Finishes available in antique bronze, black, satin nickel, white (paintable).

Flangeless trim units (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.

Trim-Mounted Reflectors

ELEMENT Specular Reflectors reduce glare while creating a clean, quiet ceiling appearance. Available finishes include Anodized Gold for a decorative accent, or Anodized Black for a truly silent ceiling look. These beautiful trim accessories have been specifically designed to minimize any effect on light performance, color, and output.
  • - Can be easily installed or removed
  • - Mounts to existing trim
  • - Compatible with Fixed and Adjustable Housings
  • - Finish Options: Anodized Gold (G) or Anodized Black (B)




shown in gold
(below ceiling view)

shown in gold
(below ceiling view)

black reflector insert

shown in gold
(trim mounted)



Click here to download the Reflectors specification sheet.

Housings


CHICAGO PLENUM

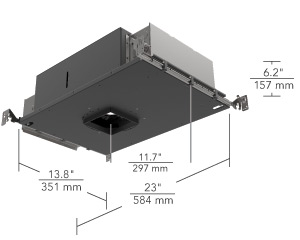

EMERGENCY BATTERY NON-IC AIRTIGHT

IC AIRTIGHT

NON-IC AIRTIGHT

Awards

2012 Selection: IES Progress Report Product Innovation Award Winner: PIA 2013

Dimming

ELEMENT 4"
DIMMER PART NUMBER FIXTURES PER DIMMER MEASURED LIGHT
OUTPUT RANGE
COMMENTS
Incandescent
(Lutron)
DV-600P-WH 1 - 2 98% - 5%
ELV
(Lutron)
DVCL-153P-WH Not Recommended Not Recommended Buzzing
ELV
(Lutron)
DVELV-303P 1 - 12 95% - 10%
ELV
(Lutron)
HQRD-6NA 1-10 96%-2%
Incandescent
(Lutron)
MA-600-WH Not Recommended Not Recommended Flicker at low end
ELV
(Lutron)
MRF2-6ELV-120-WH 1 - 12 96% - 2%
ELV
(Lutron)
NTELV-600-WH 1 - 12 96% - 15%
ELV
(Lutron)
NVELV-600-WH 1 - 12 94% - 20%
ELV
(Lutron)
SELV-600-WH 1 - 12 94% - 10%

Flangeless Installation

Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.


Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).


Tighten four allen screws to engage side springs, securing plaster plate to ceiling and housing aperture.




Plaster plate includes cardboard insert to prevent mudding inside aperture and provide uniform ceiling appearance.


Sand and paint ceiling and insert trim.


Applications

International Association of Lighting Designers ISO - International Organization for Standards Energy Star Rated
