4" LED FIXED DOWNLIGHT

This specification grade LED downlight offers high performance with an architectural ceiling appearance. This specification grade LED downlight offers a wide selection of LED module options to address design requirements in the spaces it illuminates.
  • Lumenetix Programmable white is Bluetooth enabled for remote brightness, hue, color and saturation control. Lumenetix Araya App is available as an IOS app available from Apple.

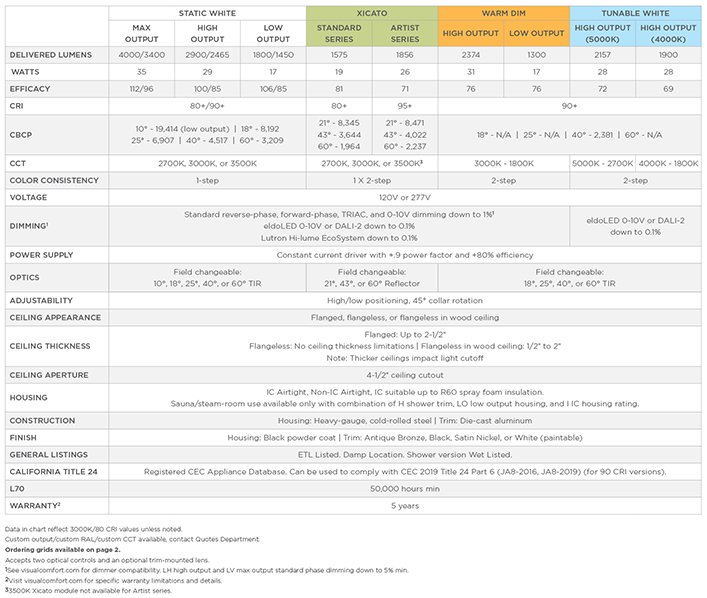

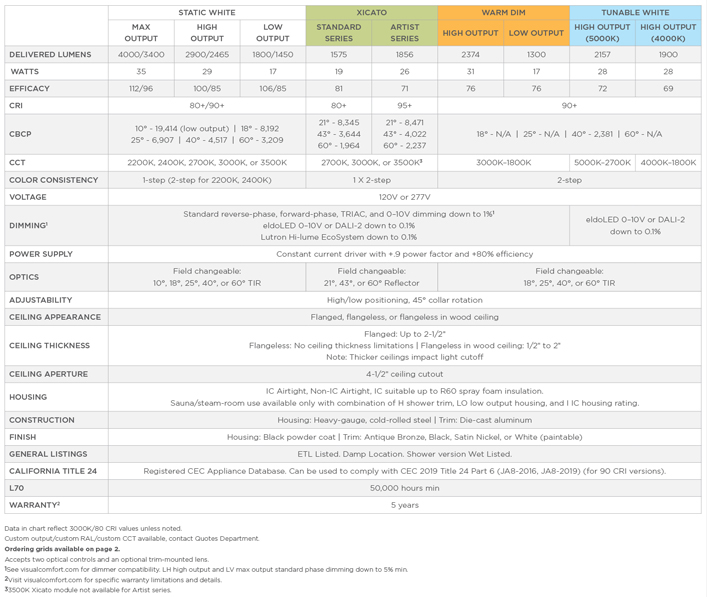

Specification Chart

Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.


SQUARE TRIMS

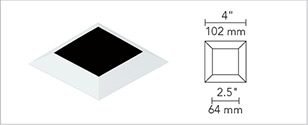

FLANGELESS BEVEL

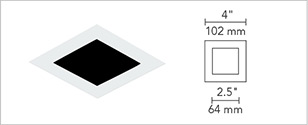

FLANGELESS FLAT

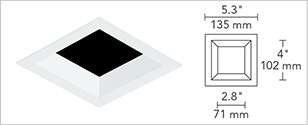

FLANGED BEVEL

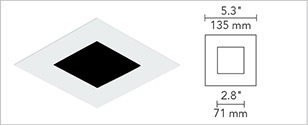

FLANGED FLAT

ROUND TRIMS

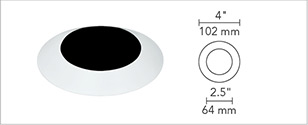

FLANGELESS BEVEL

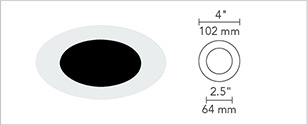

FLANGELESS FLAT

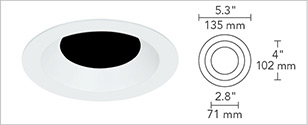

FLANGED BEVEL

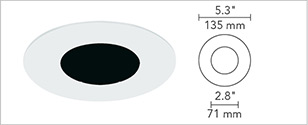

FLANGED FLAT


AVAILABLE FINISHES

Antique Bronze
Black
Satin Nickel
White
Finishes available in antique bronze, black, satin nickel, white (paintable).

Flangeless trim units (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.

IC AIRTIGHT

NON-IC AIRTIGHT
2012 Selection: IES Progress Report
ELEMENT 4"
DIMMER PART NUMBER FIXTURES PER DIMMER MEASURED LIGHT
OUTPUT RANGE
COMMENTS
Incandescent
(Lutron)
DV-600P-WH 1 - 2 98% - 5%
ELV
(Lutron)
DVCL-153P-WH Not Recommended Not Recommended Buzzing
ELV
(Lutron)
DVELV-303P 1 - 12 95% - 10%
ELV
(Lutron)
HQRD-6NA 1-10 96%-2%
Incandescent
(Lutron)
MA-600-WH Not Recommended Not Recommended Flicker at low end
ELV
(Lutron)
MRF2-6ELV-120-WH 1 - 12 96% - 2%
ELV
(Lutron)
NTELV-600-WH 1 - 12 96% - 15%
ELV
(Lutron)
NVELV-600-WH 1 - 12 94% - 20%
ELV
(Lutron)
SELV-600-WH 1 - 12 94% - 10%

Flangeless Installation

Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.

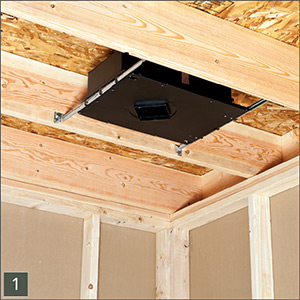

Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).

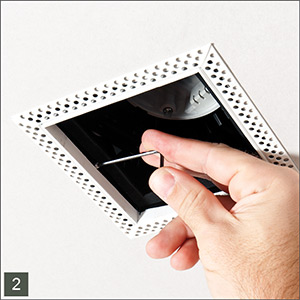

Tighten four allen screws to engage side springs, securing plaster plate to ceiling and housing aperture.

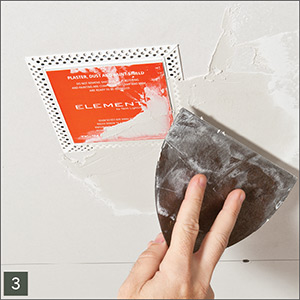

Plaster plate includes cardboard insert to prevent mudding inside aperture and provide uniform ceiling appearance.

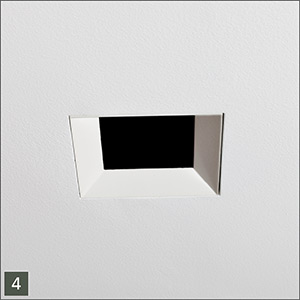

Sand and paint ceiling and insert trim.
